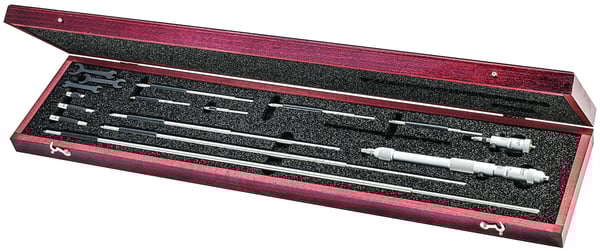

Starrett® 124DZ Solid Rod Inside Micrometer, 2 to 32 in, Graduations: 0.001 in, Steel


Description

Starrett® Inside Micrometer, Solid Rod, Series: 124, 2 to 32 in, +/-0.0001 in Accuracy, Graduations: 0.001 in, 0.001 in Resolution, Adjustable Anvil, Steel

The Starrett 124 Solid -Rod Inside Micrometer Sets are the most popular inside micrometers because of their lightness, ease of use, and range. They are very useful for measuring inside diameters of cylinders and rings and measuring parallel surfaces. The desired range is obtained by assembling rods and spacing collars to the micrometer head. Measuring rods are provided with a shoulder that is set accurately in the micrometer head and locked in position. When assembling rods to the A and B heads, the reading line on the micrometer head should be lined up with the marking on each rod (except for the 2-3" and the 50-75mm rods). Rod diameters are approximately 1/4" (6mm) on the A and B sizes, and approximately 11/32" (8.5mm) on the C size. Each rod has individual length adjustment for the anvil by means of special wrenches furnished. 2-32" Range, .001" Grad, 124A/124C Rods with Case.

Specifications

Accuracy +/-0.0001 in
Anvil Type Adjustable
Graduations 0.001 in
Material Steel
Measuring Range 2 to 32 in
Resolution 0.001 in
Series 124
Type Solid Rod

Includes: Inside Micrometer, 0.375-52 Nut, #124A B Body, ENGLISH, Short Handle, Lock Screw, Outside Shell, 0.297-40 Spindle SCR, Shell Cap, Small Collar, 2-3 in Rod, 3-4 in Rod, 4-5 in Rod, 5-6 in Rod, 6-7 in Rod, 7-8 in Rod, 8-32 in Range Inside Micrometer, 1 in Range 0.00 in Grad Micrometer Head, #124C Body, ENGLISH, 0.375-52 Nut, Shell, Outside-ENG, Adjusting Shell, Barrel Spring, 0.297-40 Spindle, SCR, Shell Cap, (2) Short Handle, Nut, Rod Chuck, 8-14 Rod, ENGLISH, 26-32 in Inside Rod, (2) 2 in Large Collar, 1 in Small Collar, Rod Point Wrench, Spanner Wrench, #3 Wrench, #124 Replacement Rod Point With Nut and Wood Case for 124D Series

Country of Origin: United States

Standards and Approvals: PROP65: This product contains a chemical known to the State of California to cause birth defects or other reproductive harm

Application:
For measuring inside diameters of cylinders and rings and measuring parallel surfaces

Features

  • Insulated rods marked with length
  • Measuring rods are solid
  • Hardened and ground anvils
  • Quick-reading figures
  • 6-1/2 in (165mm) long handle is available (124H)
