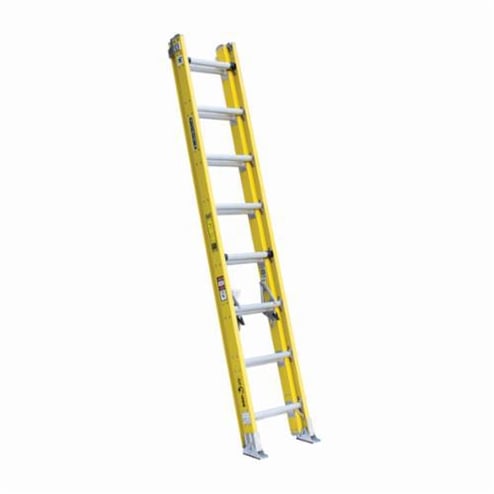

Louisville® FE4216HD FE4000HD Extra Heavy Duty Multi-Section Professional Extension Ladder, 16 ft OAL, ANSI Code: Type IAA, 375 lb Load, Fiberglass


Description

Louisville® Extension Ladder, Extra Heavy Duty Multi-Section Professional, Series: FE4000HD, 16 ft Overall Length, ANSI Code: Type IAA, 375 lb, Fiberglass, 15 ft 8 in Maximum Working Length, 8 ft Section Length, 17-3/4 in Outside Shoe Base Width, Mar-Resistant Rail, Aluminum Swivel Safety Shoe

This Louisville 16 foot heavy duty non-conductive fiberglass extension ladder has a 375lb load capacity, rated ANSI Type IAA. It is equipped with the MAXLOCK rung lock, custom engineered from a patented, advanced molecular polymer, MAXLOCK is the strongest, toughest, lightest rung lock ever made. This ladder includes the patented QuickLatch RungLock system that provides a simple, intuitive method of securing the fly and base sections of the ladder when extended. The ladder features outside slide guides, aluminum rung connector plates, D-shaped rungs fully serrated for a slip resistant surface, non-marring rail end caps, and full heavy duty metal boot with steel swivel safety shoes to be used with the tread down or in spike position. The Louisville FE4216HD fiberglass extension ladder meets or exceeds the safety standards set by ANSI, CSA, and OSHA.

Specifications

ANSI Code Type IAA
Load Capacity 375 lb
Material Fiberglass
Maximum Working Length 15 ft 8 in
Outside Shoe Base Width 17-3/4 in
Overall Length 16 ft
Rail Type Mar-Resistant
Section Length 8 ft
Series FE4000HD
Shoe Type Aluminum Swivel Safety
Type Extra Heavy Duty Multi-Section Professional

Country of Origin: Mexico

Standards and Approvals: ANSI A14.5, CSA/OSHA Compliant

Application:
MRO and Industrial Construction

Features

  • Mar-resistant rail end caps, QuickLatch™ rung lock for better secure operation
  • The ladder features outside slide guides, D-shape rungs fully serrated for slip-resistant surface
  • Aluminum swivel safety shoes with full metal boot to be used as tread down or in spike position
  • 3-1/4 in rail depth
  • 15-3/8 in base, 13-11/16 in fly inside width
  • 16-1/16 in fly outside width
  • 1-1/2 in step depth
  • 6 in stack height
  • 9 ft 2 in maximum standing height
  • 6-1/2 in approximate spread
  • 18-3/4 in bottom width
  • 7-2/9 in closed cubic feet
  • 102-3/8 in H x 18-3/4 in W x 6-1/2 in D closed dimension
  • 16 steps
  • 13 ft extended length
