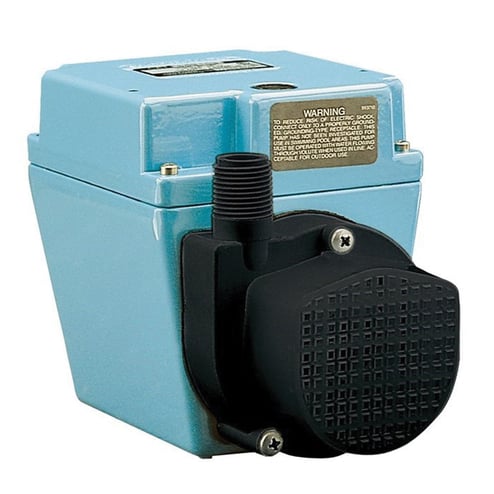

Little Giant® 502103 2E-N Small Direct Drive Oil Filled Submersible Pump, 300 gph Flow Rate, 1/4 in MNPT Outlet, 1/40 hp, Epoxy Coated Die Cast Aluminum


Description

Little Giant® Submersible Pump, Small Direct Drive Oil Filled, Series: 2E-N, 300 gph Flow Rate, 1/4 in MNPT Outlet, 1/40 hp, 115 V, 1.7 A, 60 Hz Frequency, 5.1 psi Maximum, Nylon Impeller, 120 deg F, Epoxy Coated Die Cast Aluminum, 5.5 in L x 3.5 in W x 4.8 in H Dimensions

Specifications

Amperage Rating 1.7 A
Dimensions 5.5 in L x 3.5 in W x 4.8 in H
Flow Rate 300 gph
Frequency Rating 60 Hz
Horsepower 1/40 hp
Impeller Type Nylon
Material Epoxy Coated Die Cast Aluminum
Maximum Pressure 5.1 psi
Outlet Size 1/4 in MNPT
Series 2E-N
Temperature Rating 120 deg F
Type Small Direct Drive Oil Filled
Voltage Rating 115 V

Country of Origin: Mexico

Standards and Approvals: cCSAus Certified, UL Listed

Application:
For submersible, water transfer or recirculation, water displays and air conditioners

Features

  • 1/40 hp oil filled motor
  • Epoxy coated cast aluminum housing and cover
  • Nylon volute
  • Nitrile shaft seal
  • Polypropylene screen
  • Thermal overload protection
