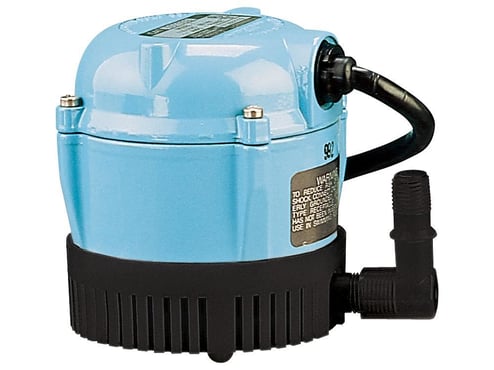

LittleGIANT® 501003 1-Series Oil-Filled Pump, 205 gph Flow Rate, 0.5 in Outlet, 1/150 hp, Nitrile Rubber


Description

LittleGIANT®, 501003, Pump, Oil-Filled, Series: 1-Series, 205 gph Flow Rate, 0.5 in Outlet, 1/150 hp, 115 VAC, 1.1 A, 60 Hz Frequency, 3.2 psi Maximum, Polypropylene Impeller, 120 deg F, Nitrile Rubber, 4.25 in H x 4.09 in W x 3.6 in L Dimensions

Specifications

Amperage Rating 1.1 A
Dimensions 4.25 in H x 4.09 in W x 3.6 in L
Flow Rate 205 gph
Frequency Rating 60 Hz
Horsepower 1/150 hp
Impeller Type Polypropylene
Material Nitrile Rubber
Maximum Pressure 3.2 psi
Outlet Size 0.5 in
Series 1-Series
Temperature Rating 120 deg F
Type Oil-Filled
Voltage Rating 115 VAC

Warranty: 1 Year

Standards and Approvals: UL Listed

Application:
For Commercial, Industrial and Home Applications Including Statuary Fountains, Water Displays, Air Conditioners, Machine Tool Coolants, and Many other Applications Where Liquid Must Be Transferred or Recirculated

Features

  • 1/150 hp, oil-filled direct-drive motor
  • 205 gph at 1 in head
  • Epoxy coated die-cast aluminum housing
  • Polypropylene volute and elbow
  • Nitrile shaft seal
  • 1/4 in MNPT outlet, with 90 deg elbow accessory, accepts 1/2 in I.D. tubing
