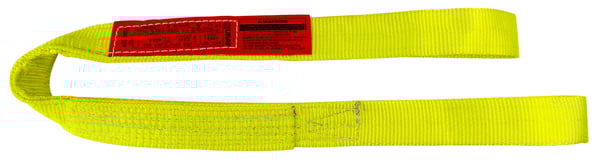

Lift-All® EE4804NFX6 Heavy Duty Eye and Flat Eye, 6 ft L x 4 in W, 19800 lb, Nylon, Type 3


Description

Lift-All®, EE4804NFX6, Eye and Flat Eye, Heavy Duty, 4 in Width, 6 ft Length, 19800 lb Vertical Hitch, 15800 lb Choker Hitch, 39600 lb Basket Hitch, 16 in Eye Length, Web Grade: Webmaster 1600/Tuff-Edge II, 4 Ply, Type 3 Sling, Nylon, Yellow, 200 deg F

Webmaster® 1600 is the traditional standard of heavy duty slings. The red core yarn warning system aids in the inspection process and the Yellow treatment extends sling life while also resisting abrasion.

Specifications

Basket Hitch Capacity 39600 lb
Choker Hitch Capacity 15800 lb
Color Yellow
Eye Length 16 in
Length 6 ft
Material Nylon
Number of Plys 4
Sling Rating Type 3
Temperature Range 200 deg F
Type Heavy Duty
Vertical Hitch Capacity 19800 lb
Web Grade Webmaster 1600/Tuff-Edge II
Width 4 in

Warranty: Limited Liability Warranty

Country of Origin: United States

Standards and Approvals: ASME B30.9, OSHA 1910.184, WSTDA Standard

Application:
For daily use under good to rugged lifting conditions

Features

  • Red core yarn warning system aids in the inspection process
  • Tuff-Tag provides serial numbered identification for traceability
  • Proven reliability
  • Yellow treatment for abrasion resistance and extended sling life
  • Polyester web is identified by single blue surface stripe
  • Always protect synthetic slings from being cut by corners and edges
  • Nylon web stretches more, which helps avoid shock loading
  • See Sling Protection section in the Lift-All catalog
