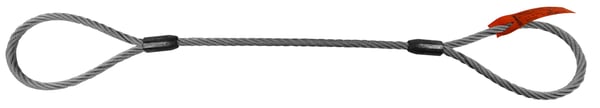

Lift-All® 516EEX4 Permaloc Domestic Wire Rope Sling, 5/16 in Dia Wire Rope, 4 ft L, 1 ton, Steel, Eye End Style


Description

Lift-All®, 516EEX4, Wire Rope Sling, Domestic, Series: Permaloc, 5/16 in Wire Rope Diameter, 4 ft Length, 1 ton Vertical Hitch, 0.74 ton Choker Hitch, 2 ton Basket Hitch, Steel, Eye End Style, 5 in L x 2.5 in W Eye

Lift-All® slings have reserve strength because of the Flemish Eye splice technique. Along with countless combinatios of sling terminations, hooks, chokers and thimbles are available to fit specific lift requirements.

Specifications

Basket Hitch Capacity 2 ton
Choker Hitch Capacity 0.74 ton
End Style Eye
Eye Size 5 in L x 2.5 in W
Length 4 ft
Material Steel
Series Permaloc
Type Domestic
Vertical Hitch Capacity 1 ton
Wire Rope Diameter 5/16 in

Warranty: Limited Liability Warranty

Country of Origin: United States

Standards and Approvals: OSHA 1910.184, ASME B30.9

Features

  • Tuff-Tag for capacity and serial numbered identification
  • Least expensive (per capacity), of all steel slings
  • Use of IWRC EIPS rope gives 15 Percent greater capacity than IWRC IP (Improved Plow) ropes
  • Countless combinations of sling terminations hooks, chokers, and thimbles are available to fit specific lift requirements
  • Reserve strength integrity of eyes not solely dependent upon steel sleeves
  • IWRC resists crushing better than FC ropes
  • When specified, thimble eyes protect wire rope from wear for increased life
  • Good abrasion resistance for longer life
