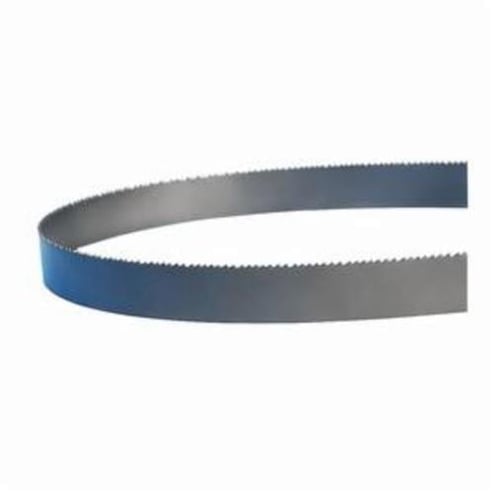

Lenox® RX®+ 39195RPB247400 Welded Band Saw Blade, 24 ft 3-3/8 in L, 1-1/2 in W x 0.05 in THK, 5 to 8 TPI, Bi-Metal Blade, M42 HSS Tooth


Description

Lenox® RX®+ Band Saw Blade, Welded, 24 ft 3-3/8 in Length, 1-1/2 in Blade Width, 0.05 in Blade Thickness, 5 to 8 TPI, Bi-Metal Blade, Tooth Form: Milled/Variable Pitch, Tooth Set: Raker/Variable Pitch, M42 HSS Tooth, Flexible/Spring Tempered Alloy Steel Back, 5 deg Hook Angle, 0.058 in Kerf, 0.004 in Side Set

Specifications

Back Type Flexible/Spring Tempered Alloy Steel
Blade Material Bi-Metal
Blade Thickness 0.05 in
Blade Width 1-1/2 in
Hook Angle 5 deg
Kerf 0.058 in
Length 24 ft 3-3/8 in
Side Set Degree 0.004 in
Teeth per Inch 5 to 8 TPI
Tooth Form Milled/Variable Pitch
Tooth Material M42 HSS
Tooth Set Raker/Variable Pitch
Type Welded

Standards and Approvals: OSHA 29 CFR 1910.1200

Application:
For metal sawing applications

Features

  • Engineered to cut structural, tubing and bundles
  • Reinforced tooth design for long blade life and extreme durability
  • Patented tooth profile powers through interrupted cuts, eliminates tooth strippage even at higher feed rates
  • Quiet cutting, reduced vibration
  • Unique, patented tooth pitch/set sequence minimizes vibration and equalizes tooth loading, this eliminates harmonics and significantly reduces noise levels
  • Ideal for cutting materials like carbon steel and structural steel
  • Variable tooth spacing and gullet capacity of this design reduces noise and vibration, while allowing faster cutting rates, long blade life and smooth cuts
  • Typically vari-raker set provides quiet, efficient cutting and a smooth finish with less burr
  • HSS tooth tips combined with flexible alloy steel backing material results in band saw blades that are the most cost effective choice for most metal sawing applications
  • A wide variety of products are available to ensure optimal blade performance in your applications
