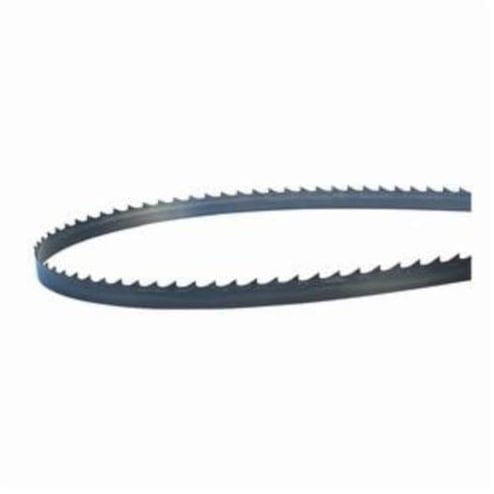

Lenox® Flex Back 1812104 Welded Band Saw Blade, 4 ft 11-7/8 in L, 3/8 in W x 0.025 in THK, 6 TPI, Carbon Steel Blade, Carbon Steel Tooth


Description

Lenox® Flex Back Band Saw Blade, Welded, 4 ft 11-7/8 in Length, 3/8 in Blade Width, 0.025 in Blade Thickness, 6 TPI, Carbon Steel Blade, Tooth Form: Hook/Milled/Straight, Tooth Set: Raker, Carbon Steel Tooth, Flexible/Soft Back, 10 deg Hook Angle, 0.045 in Kerf, 0.01 in Side Set

Specifications

Back Type Flexible/Soft
Blade Material Carbon Steel
Blade Thickness 0.025 in
Blade Width 3/8 in
Hook Angle 10 deg
Kerf 0.045 in
Length 4 ft 11-7/8 in
Side Set Degree 0.01 in
Teeth per Inch 6 TPI
Tooth Form Hook/Milled/Straight
Tooth Material Carbon Steel
Tooth Set Raker
Type Welded

Standards and Approvals: OSHA 29 CFR 1910.1200

Application:
For general purpose and utility sawing operations, hand-fed applications on vertical saws

Features

  • Excellent fatigue life
  • Versatile performance, our hardened tooth tip/flexible back heat treating enables these blades to cut a variety of materials well at fairly high band speeds
  • Flexible carbon steel is very durable even at high band speeds up to 15000 fpm
  • Designed for use on vertical contour saws
  • Perfect for utility cutting of a wide variety of materials
  • Ideal for cutting aluminum, carbon, brass, graphite, bronze, plastics, copper, wood and fiberglass
  • A one-piece blade made of carbon steel with a hardened tooth edge and soft back
  • Similar in design to the skip form, this high raker blade can be used for materials which produce a discontinuous chip (such as cast iron) as well as for non-metallic materials
  • Three tooth sequence with a uniform set angle (left, right, straight)
  • The economical choice for general purpose and utility sawing operations
  • These blades cut a wide variety of materials from carbon steel and aluminum to abrasive materials like fiberglass and wood
