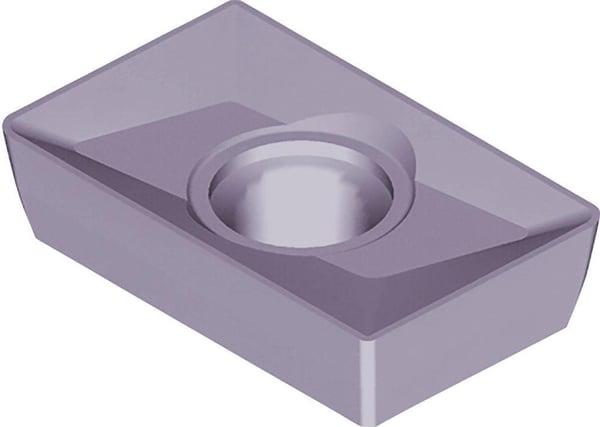

KYOCERA 8860947 EM/FM/CM Series 2-Cutting Edge Indexable Milling Insert With Hole, ANSI Code: XPMT15T308PR1535, XPMT Insert, #15T308 Insert, Carbide, Manufacturer's Grade: PR1535, Parallelogram Shape, Material Grade: M, S, P


Description

KYOCERA Indexable Milling Insert, 2-Cutting Edge, Series: EM/FM/CM Series, XPMT Insert, #15T308 Insert, Parallelogram Shape, 3/8 in Inscribed Circle, 5/32 in Thickness, 0.6071 in Length, 1/32 in Corner Radius, Positive Rake, 0.1575 in Diameter Hole, Manufacturer's Grade: PR1535, ANSI Code: XPMT15T308PR1535, ISO Code: XPMT15T308, Right Hand of Insert, Carbide, PVD-MEGACOAT NANO, Material Grade: M, S, P, Precipitation Hardened Stainless Steel, Heat-Resistant Alloy, Free-Cutting Steel, Carbon/Alloy Steel, Mold Steel, Austenitic Stainless Steel and Martensitic Stainless Steel Material Application

Specifications

ANSI Code XPMT15T308PR1535
Corner Radius 1/32 in
Finish PVD-MEGACOAT NANO
Hand of Insert Right
Hole Diameter 0.1575 in
Inscribed Circle 3/8 in
Insert Size #15T308
Insert Style XPMT
ISO Code XPMT15T308
Length 0.6071 in
Manufacturer's Grade PR1535
Material Carbide
Material Application Precipitation Hardened Stainless Steel, Heat-Resistant Alloy, Free-Cutting Steel, Carbon/Alloy Steel, Mold Steel, Austenitic Stainless Steel and Martensitic Stainless Steel
Material Grade M, S, P
Rake Positive
Series EM/FM/CM Series
Shape Parallelogram
Thickness 5/32 in
Type 2-Cutting Edge

Countries of Origin: United States, Japan, China, Korea, Republic Of

Standards and Approvals: ECCN: EAR99

Application:
For PVD for titanium alloy and precipitation hardened stainless steel, facing, shouldering, slotting, chamfering and countersinking

Features

  • Stabilized turning operations and long tool life with MEGACOAT NANO coating technology
