Koch Filter® H66G1X1 BioMAX™ Standard Capacity HEPA Air Filter, 24 in H x 24 in W x 11-1/2 in D, 15, Domestic


Description

Koch Filter® HEPA Air Filter, Standard Capacity, Series: BioMAX™, 24 in Width, 11-1/2 in Depth, 24 in Height, MERV: 15, 1050 cfm, SBW Style, 0.9997 Efficiency, 1 in WG Initial Resistance, Ultrafine Glass Fiber Paper Media, Domestic

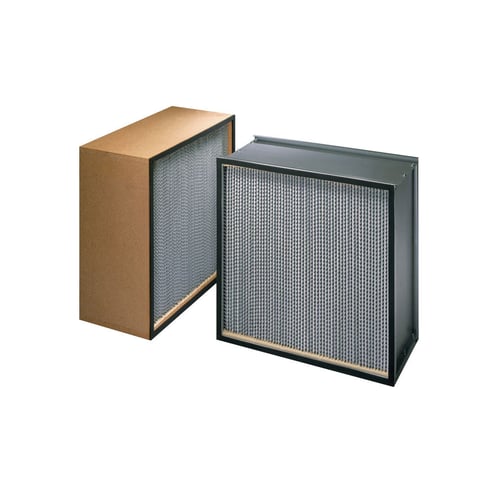

Koch Filter Corporation BioMAX HEPA Filters are designed to provide the highest level of filtration available for commercial and industrial applications. They are widely used in hospitals, clean rooms, pharmaceutical plants, and in hundreds of other systems where clean air is critical in the protection of people, processes and equipment. BioMAX HEPA Filters are constructed using the highest quality components available and are available in efficiencies of 99.97%, 99.99% and 99.999% on 0.3 micron size particles. Standard construction BioMAX HEPA Filters are manufactured with galvanized steel cell sides (UL Class 1) or particle board cell sides (UL Class 2). Multiple cell side options are also available.

Specifications

Depth 11-1/2 in
Domestic/Import Domestic
Efficiency 0.9997
Flow Rate 1050 cfm
Frame Type SBW Style
Height 24 in
Initial Resistance 1 in WG
Media Material Ultrafine Glass Fiber Paper
MERV 15
Series BioMAX™
Type Standard Capacity
Width 24 in

Country of Origin: United States

Standards and Approvals: ASHRAE Approved, NAFA Certified, USGBC Member, UL Class 1

Application:
For hospitals, clean rooms, pharmaceutical plants, commercial and industrial applications

Features

  • Standard capacity BioMAX® filters offer an excellent combination of high efficiency, factory tested performance and economical initial purchase price
  • 0.3 micron size particles
  • The filter is designed to operate under normal conditions, with the 12 in deep model capable of maintaining a pressure drop of 1 in wg at airflows up to 260 fpm
  • Standard construction BioMAX® HEPA filters are manufactured with galvanized steel cell sides
  • Standard BioMAX® HEPA filters are furnished with neoprene gaskets 1/4 x 11/16 in
  • The gasket is installed on the downstream side of the filter to prevent leakage between the filter and the frame upon installation in the filter housing
  • Precision crafted corrugated aluminum separators maintain exact pleat spacing and ensure proper airflow throughout the filter's lifecycle
  • The leading edge of each separator is rolled over to create a separator that is twice as strong to avoid damage to the air filter media
  • Polyurethane foam sealant
  • The media pack in BioMAX® HEPA filters is completely sealed to the cell side frame with a specially designed polyurethane foam bond
  • As the adhesive cures, the material expands into the media pack eliminating leaks
  • BioMAX® media is produced from submicron glass fibers formed into a water resistant, high efficiency, high density wet-laid paper mat
  • The media is fire retardant to 1000 deg F (538 deg C)
  • Options available for cell side, separators, gasket, sealant and faceguards
