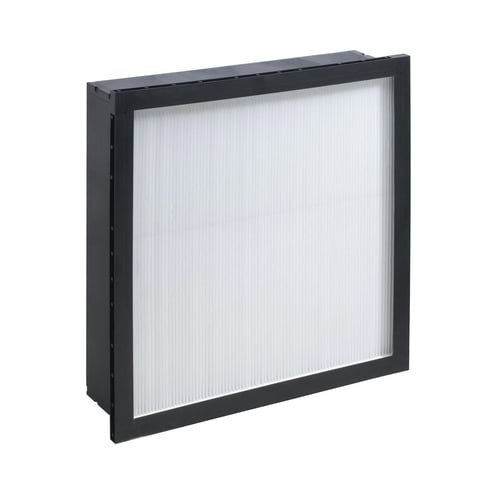

Koch Filter® 120-26-1625 MicroMAX PL6™ High Efficiency Extended Surface Minipleat Filter, 25 in H x 16 in W x 6 in D, MERV 14 MERV, 175 deg F, Domestic


Description

Koch Filter® Extended Surface Minipleat Filter, High Efficiency, Series: MicroMAX PL6™, 16 in Width, 6 in Depth, 25 in Height, MERV 14 MERV, 1400 cfm, 175 deg F, High Impact Polystyrene Frame, 0.95 Efficiency, 0.58 in WG Initial Resistance, 1-1/2 in WG Final Resistance, Micro Fiberglass Paper Media, Domestic

The MicroMAX PL6™ is an extended surface, mini-pleat air filter engineered to provide maximum performance and prolonged filter lifecycles in all types of commercial and industrial HVAC applications. The MicroMAX PL6 offers the same media square footage and comparable performance of normal 12 in final filters, but in a compact design. The MicroMAX PL6 mini-pleat media pack utilizes thermoplastic glue-bead separators to ensure consistent media spacing and aerodynamic airflow.

Specifications

Depth 6 in
Domestic/Import Domestic
Efficiency 0.95
Final Resistance 1-1/2 in WG
Flow Rate 1400 cfm
Frame Material High Impact Polystyrene
Height 25 in
Initial Resistance 0.58 in WG
Media Material Micro Fiberglass Paper
MERV 14
Series MicroMAX PL6™
Temperature Rating 175 deg F
Type High Efficiency
Width 16 in

Country of Origin: United States

Standards and Approvals: ASHRAE 52.2-2007, UL 900, NAFA Standard, USGBC Member, Energy Star Certified

Application:
For commercial and industrial HVAC applications

Features

  • Media used in MicroMAX™ PL6™ mini-pleat filters is composed of micro-fiberglass paper, treated with a specially formulated, water repellent binder
  • Millions of fibers are constructed into a graded density mat, with coarse fibers upstream and finer fibers on the air exiting side
  • Dual density media combined with a mini-pleat design ensures full media utilization, which results in higher dust holding capacity and extended filter life in a compact configuration
  • Mini-pleat design provides low pressure drop and reduced energy costs
  • High efficiency micro fiberglass filter media provides high efficiency and superior dust holding capacity for prolonged service life
  • Thermoplastic glue bead separators ensure low pressure drop and aerodynamic airflow
  • Specialized media sealant secures media to frame and eliminates air bypass
  • Durable plastic frame components make the MicroMAX™ PL6™ light weight, yet extremely rigid and easy to install
  • The all plastic frame makes the MicroMAX™ PL6™ completely incinerable after use
  • Reduces freight and handling
  • Single header
  • 84 sq-ft media
