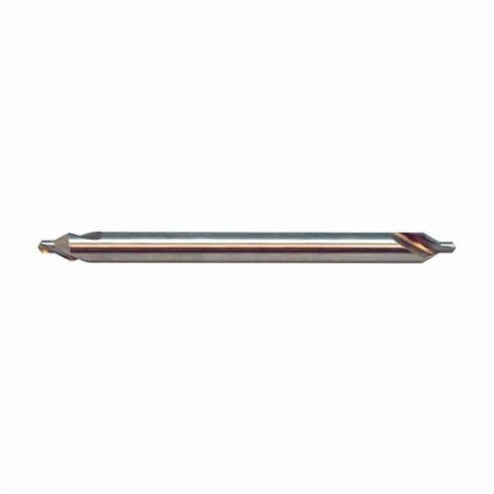

KEO 26060 Double End Long Plain Combined Drill and Countersink, 7/32 in Drill - Fraction, 0.2188 in Drill - Decimal Inch, 60 deg Included Angle, 118 deg Point Angle, HSS, Bright


Description

KEO Combined Drill and Countersink, Double End Long Plain, 7/32 in Drill Size - Fraction, 0.2188 in Drill Size - Decimal Inch, #6 Point Dia, 1/2 in Body Dia, 6 in Overall Length, 2 Flutes, Spiral Flute, 1/2 in Shank, Round Shank, 118 deg Point, 60 deg Included Angle, Right Hand Cutting, HSS Cutting Edge, HSS, Bright, Applicable Materials: Steel and Other Ferrous Materials

Specifications

Applicable Materials Steel and Other Ferrous Materials
Body Diameter 1/2 in
Cutting Direction Right Hand
Cutting Edge Material HSS
Drill Size - Decimal Inch 0.2188 in
Drill Size - Fraction 7/32 in
Finish Bright
Flute Type Spiral
Included Angle 60 deg
Material HSS
Number of Flutes 2
Overall Length 6 in
Point Angle 118 deg
Point Diameter #6
Shank Size 1/2 in
Shank Type Round
Type Double End Long Plain

Country of Origin: United States

Standards and Approvals: ISO 9002, 9001:2008

Application:
For producing center holes in components

Features

  • Long series combined drill and countersinks are used for producing center holes in components or workpieces with the extra length allowing access to difficult-to-reach areas
