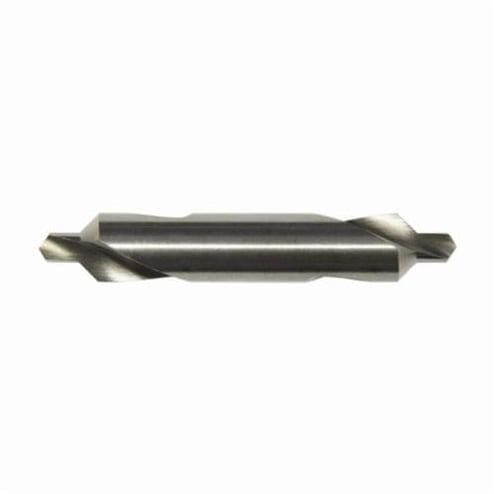

KEO 10182 Aircraft Double End Plain Standard Combined Drill and Countersink, 3/64 in Drill - Fraction, 0.0469 in Drill - Decimal Inch, 82 deg Included Angle, 118 deg Point Angle, HSS, Bright


Description

KEO Combined Drill and Countersink, Aircraft Double End Plain Standard, 3/64 in Drill - Fraction, 0.0469 in Drill - Decimal Inch, #1 Point Diameter, 1/8 in Diameter Body, 1-1/4 in Overall Length, 2 Flutes, Spiral Flute, 1/8 in Shank, Round Shank, 118 deg Point, 82 deg Included Angle, Right Hand Cutting Direction, HSS Cutting Edge, HSS, Bright, Applicable Materials: Steel and Other Ferrous Materials

Specifications

Applicable Materials Steel and Other Ferrous Materials
Body Diameter 1/8 in
Cutting Direction Right Hand
Cutting Edge Material HSS
Drill Size - Decimal Inch 0.0469 in
Drill Size - Fraction 3/64 in
Finish Bright
Flute Type Spiral
Included Angle 82 deg
Material HSS
Number of Flutes 2
Overall Length 1-1/4 in
Point Angle 118 deg
Point Diameter #1
Shank Size 1/8 in
Shank Type Round
Type Aircraft Double End Plain Standard

Country of Origin: United States

Standards and Approvals: ISO 9002, 9001:2008

Application:
For producing center holes in components or workpieces which require machining between centers

Features

  • 3/64 in L point
  • Drill and chamfer in one pass
  • HSS is the most popular general purpose tool steel
  • Extra length permits access to hard-to-reach applications
  • HSS provides good wear resistance
  • For producing center holes in components or work pieces with the extra length allowing access to difficult-to-reach areas
