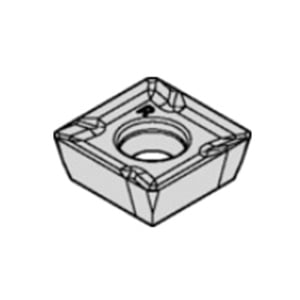

Kennametal® 2390254 4-Cutting Edge Light Duty Milling Insert, ANSI Code: SPCT3125PPER8LD2 KC725M, SPCT Insert, 3125 Insert, Carbide, Manufacturer's Grade: KC725M, 90 deg Square Shape, Material Grade: C5, C6, C7


Description

Kennametal® Milling Insert, 4-Cutting Edge Light Duty, SPCT Insert, 3125 Insert, 90 deg Square, 0.394 in Inscribed Circle, 0.156 in Thickness, 0.394 in Width, 0.394 in Length, 0.031 in Corner Radius, 0.1339 in Hole Dia, Manufacturer's Grade: KC725M, ANSI Code: SPCT3125PPER8LD2 KC725M, ISO Code: SPCT10T3PPERLD2 KC725M, Right Hand, Carbide, PVD-TiAlN Coated, Material Grade: C5, C6, C7, High Temperature Alloys, Steel and Stainless Steel Material Application

Specifications

ANSI Code SPCT3125PPER8LD2 KC725M
Corner Radius 0.031 in
Finish PVD-TiAlN Coated
Hand of Insert Right
Hole Diameter 0.1339 in
Inscribed Circle 0.394 in
Insert Size 3125
Insert Style SPCT
ISO Code SPCT10T3PPERLD2 KC725M
Length 0.394 in
Manufacturer's Grade KC725M
Material Carbide
Material Application High Temperature Alloys, Steel and Stainless Steel
Material Grade C5, C6, C7
Shape 90 deg Square
Thickness 0.156 in
Type 4-Cutting Edge Light Duty
Width 0.394 in
