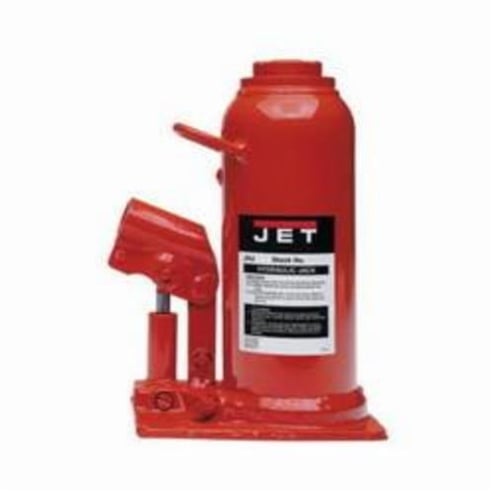

JET® JT9-453303 JHJ Heavy Duty Hydraulic Bottle Jack, 3 ton Load, 7-1/2 in H Min, 14-3/8 in H Max, 4-1/2 in, 2-3/8 in L Screw


Description

JET®, JT9-453303, Hydraulic Bottle Jack, Heavy Duty, Series: JHJ, 3 ton Load, 7-1/2 in Minimum Height, 14-3/8 in Maximum Height, 4-1/2 in Piston Stroke, 2-3/8 in Screw Length, 2-13/16 in Base Width, 4-9/16 in Base Length

JET®JHJ series hydraulic bottle jacks have capacities from 2 to 100 tons and are available in standard and low profile heights. The pump piston and ram are chrome plated for added corrosive resistance increasing durability. Each JHJ model functions in upright, angled or horizontal positions for increased versatility.

Specifications

Base Length 4-9/16 in
Base Width 2-13/16 in
Load Capacity 3 ton
Maximum Height 14-3/8 in
Minimum Height 7-1/2 in
Piston Stroke 4-1/2 in
Screw Length 2-3/8 in
Series JHJ
Type Heavy Duty

Includes: Pump Handle

Country of Origin: Japan

Standards and Approvals: ANSI/ASME B30.1, PALD-1

Application:
Lifting, Pushing, Spreading, Bending, Pressing and Straightening

Features

  • Precision machined and polished cylinders provide non-abrasive, leak-free, durable performance
  • Heavy duty bases are electrically welded providing a stable platform
  • Hydraulic system is protected from damage by internal by-pass mechanism
  • Chrome plated piston and ram are corrosion resistant for use in any industrial environment
  • Industrial duty construction permits use in extreme climates
  • Upright, horizontal or angled operating positions increase versatility
