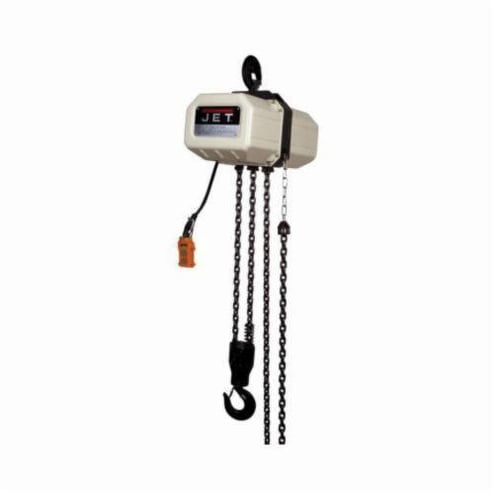

JET® JT9-121150 SSC 1-Phase Heavy Duty Electric Chain Hoist, 0.5 ton Load, 15 ft H Lifting, 7/8 hp Power Rating, 115/230 VAC


Description

JET®, JT9-121150, Electric Chain Hoist, 1-Phase Heavy Duty, Series: SSC, 0.5 ton Load, 15 ft Lifting Height, 19 fpm Lift, 24 VAC Pushbutton Station Control, DC Electromagnetic Brake, 7/8 hp Power, 115/230 VAC, 20-3/16 in Headroom, 106 lb Weight

JET® SSC Series Electric Hoists combines safety and durability to operate in commercial and industrial applications. All models incorporate a slip clutch overload protection mechanism that prevents the hoist from lifting damaging loads above its rated capacity. They are available in single or three phase configurations to suit your electrical needs. Single phase models have a thermal overload protection design that keeps the hoist from overheating, while the three phase models feature a reverse phase relay that protects the hoist from incorrect wiring. The industry proven DC electro-magnetic brake increases safety by holding the load even when power is interrupted. The maintenance-free gear train incorporates a sealed oil bath, for reliability and durability. The JET® SSC Series Electric Hoist is available in 1/2-Ton to 5-Ton capacities with standard lifts of 10, 15, and 20 feet (custom lifts available).

Specifications

Brake Type DC Electromagnetic
Control Type 24 VAC Pushbutton Station
Headroom 20-3/16 in
Lift Speed 19 fpm
Lifting Height 15 ft
Load Capacity 0.5 ton
Power Rating 7/8 hp
Series SSC
Type 1-Phase Heavy Duty
Voltage Rating 115/230 VAC
Weight 106 lb

Country of Origin: China

Standards and Approvals: ANSI/ASME B30.16, HST-1 Standards, OSHA Regulations

Application:
Commercial and Industrial Applications

Features

  • Overload protection slip clutch design prevents the hoist from lifting damaging loads above its rated capacity
  • Thermal overload protection protects the hoist from overheating in low voltage situations
  • DC electro-magnetic brake an industry proven safety feature that secures the load even if power is interrupted to the hoist
  • Limit switches - upper and lower limiting switches increase safety by preventing the load chain from over traveling
  • Safety and durability, prewired 230 V
  • Sealed gear train maintenance free gear train incorporates a sealed oil bath that eliminates upkeep
  • Grade 80 black oxide coated load chain for durability
  • Control pendant- 24 volt push button controller with cable strain relief system for durability and reliability in industrial and commercial settings
  • 1 falls
  • 25% duty cycle
  • H3 duty rating
  • Certification load tested to 125% of capacity with certificate
  • Controls- NEMA 4X compliant push button control pendants
  • Fully enclosed, all steel plate construction with a durable powder coat finish keeps out moisture, dust and debris lengthening the life of the hoist
  • 6.3 x 19 mm load chain
