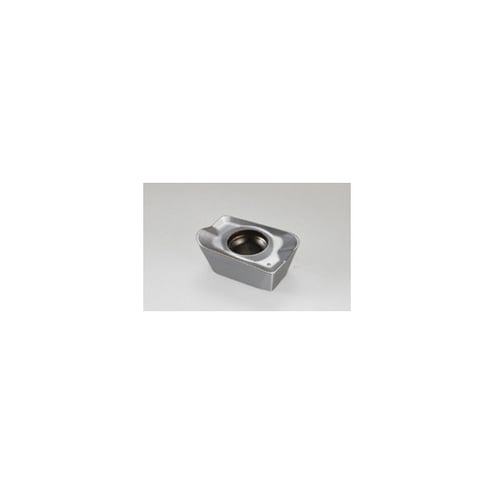

Iscar 5601349 HELIMILL Milling Insert With 2 Helical Cutting Edges, ADKT Insert, 150532 Insert, Carbide, Manufacturer's Grade: IC328, 85 deg Parallelogram Shape, Material Grade: C2, C3, C5, C6, P, M, S


Description

Iscar Milling Insert, Series: HELIMILL, ADKT Insert, 150532 Insert, 85 deg Parallelogram Shape, 5.6 mm Thickness, 9.57 mm Width, 15.5 mm Length, HM Chipbreaker, 3.2 mm Corner Radius, 15 deg Lead Angle, Manufacturer's Grade: IC328, ISO Code: ADKT 150532R-HM IC328, Right Hand of Insert, Carbide, PVD-TiCN Coated, Material Grade: C2, C3, C5, C6, P, M, S, Steel, Stainless Steel Ferritic and Martensitic, Stainless Steel Austenitic and Duplex and High Temperature Alloys Material Application

Specifications

Chipbreaker HM
Corner Radius 3.2 mm
Finish PVD-TiCN Coated
Hand of Insert Right
Insert Size 150532
Insert Style ADKT
ISO Code ADKT 150532R-HM IC328
Lead Angle 15 deg
Length 15.5 mm
Manufacturer's Grade IC328
Material Carbide
Material Application Steel, Stainless Steel Ferritic and Martensitic, Stainless Steel Austenitic and Duplex and High Temperature Alloys
Material Grade C2, C3, C5, C6, P, M, S
Series HELIMILL
Shape 85 deg Parallelogram
Thickness 5.6 mm
Width 9.57 mm

Country of Origin: Iceland

Application:
T-Slotting, Bottom Shouldering, Counterboring, Countersinking, Drill Mill, Facing, Rampdown, Plunging and Recessing
