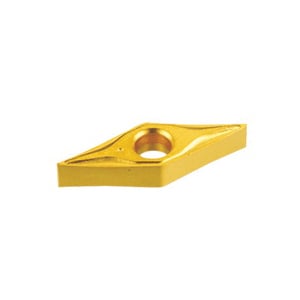

Iscar 5507370 ISOTURN 2-Sided Turning Insert, ANSI Code: VNMG 331-NF IC9250, VNMG Insert, Material Grade: M, P, 331 Insert, Rhombic Shape, 16 Seat, Positive Rake, For Use On Stainless Steel and Steel, Carbide, Manufacturer's Grade: IC9250


Description

Iscar Turning Insert, 2-Sided, Series: ISOTURN, VNMG Insert, 331 Insert, Rhombic, 2.5 mm Maximum Depth of Cut, 9.52 mm Inscribed Circle, 4.76 mm Thickness, 16 Seat, Positive Rake, NF Chipbreaker, 0.4 mm Corner Radius, 3.81 mm Hole Dia, Manufacturer's Grade: IC9250, ANSI Code: VNMG 331-NF IC9250, ISO Code: VNMG 160404-NF IC9250, 35 deg Included Angle, 0 deg Relief Angle, Carbide, CVD-TiCN+alpha Al2O3+TiN Coated, Material Grade: M, P, For Use On: Stainless Steel and Steel

Specifications

ANSI Code VNMG 331-NF IC9250
Chipbreaker NF
Corner Radius 0.4 mm
Finish CVD-TiCN+alpha Al2O3+TiN Coated
For Use On Stainless Steel and Steel
Hole Diameter 3.81 mm
Included Angle 35 deg
Inscribed Circle 9.52 mm
Insert Size 331
Insert Style VNMG
ISO Code VNMG 160404-NF IC9250
Manufacturer's Grade IC9250
Material Carbide
Material Grade M, P
Maximum Depth of Cut 2.5 mm
Rake Positive
Relief Angle 0 deg
Seat Size 16
Series ISOTURN
Shape Rhombic
Thickness 4.76 mm
Type 2-Sided

Country of Origin: Israel

Application:
Semi-Finishing and Finishing

Features

  • Low cutting forces due to very sharp edge and positive rake
  • Chipbreaker on both sides, with hole
