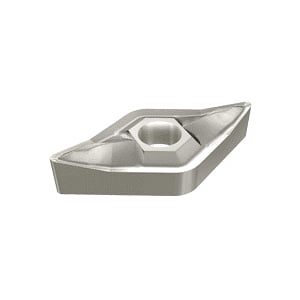

Iscar 5500519 ISOTURN 1-Sided Turning Insert, ANSI Code: DNMS 432-12 IC20, DNMS Insert, Material Grade: H, K, M, N, S, 432 Insert, Rhombic Shape, 15 Seat, Positive Rake, Carbide, Manufacturer's Grade: IC20


Description

Iscar Turning Insert, 1-Sided, Series: ISOTURN, DNMS Insert, 432 Insert, Rhombic, 4 mm Maximum Depth of Cut, 12.7 mm Inscribed Circle, 4.76 mm Thickness, 15 Seat, Positive Rake, 0.8 mm Corner Radius, 5.1562 mm Hole Dia, Manufacturer's Grade: IC20, ANSI Code: DNMS 432-12 IC20, ISO Code: DNMS 150408-12 IC20, 55 deg Included Angle, 0 deg Relief Angle, Carbide, Uncoated, Material Grade: H, K, M, N, S, For Use On: Stainless Steel, Cast Iron, Hardened Steel, High Temperature Alloys and Aluminum

Specifications

ANSI Code DNMS 432-12 IC20
Corner Radius 0.8 mm
Finish Uncoated
For Use On Stainless Steel, Cast Iron, Hardened Steel, High Temperature Alloys and Aluminum
Hole Diameter 5.1562 mm
Included Angle 55 deg
Inscribed Circle 12.7 mm
Insert Size 432
Insert Style DNMS
ISO Code DNMS 150408-12 IC20
Manufacturer's Grade IC20
Material Carbide
Material Grade H, K, M, N, S
Maximum Depth of Cut 4 mm
Rake Positive
Relief Angle 0 deg
Seat Size 15
Series ISOTURN
Shape Rhombic
Thickness 4.76 mm
Type 1-Sided

Country of Origin: Israel

Features

  • A special positive rake angle for moderate cutting forces
