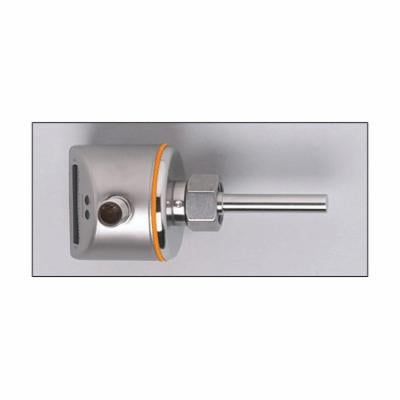

IFM Efector300® SI5010 Flow Sensor/Monitor, 1 to 2/1 to 10 s Response, DC PNP Output, 18 to 36 VDC


Description

IFM Efector300® Flow Sensor/Monitor, 1 to 2/1 to 10 s Response, DC PNP Output, 18 to 36 VDC, 250 mA, M12 x 1 Connection, 300 bar Pressure, -25 to 80 deg C Operating, Environmental Conditions: -25 to 80 deg C Ambient Temperature/-25 to 100 Storage Temperature/IP67/IP68 Protection

Specifications

Amperage Rating 250 mA
Connection Type M12 x 1
Environmental Conditions -25 to 80 deg C Ambient Temperature/-25 to 100 Storage Temperature/IP67/IP68 Protection
Operating Temperature -25 to 80 deg C
Output Type DC PNP
Pressure Rating 300 bar
Response Time 1 to 2/1 to 10 s
Voltage Rating 18 to 36 VDC

Standards and Approvals: CE Marked, EAC Certified, cULus Listed

Application:
For liquids and gases

Features

  • < 60 mA current consumption
  • III protection class
  • Reverse polarity protection
  • NO-NC programmable output function
  • < 2.5 VAC voltage drop
  • Short-circuit protection
  • 3 to 300 cm/s Setting range liquids
  • 3 to 100 cm/s greatest sensitivity liquids
  • 200 to 3000 cm/s setting range gases
  • 200 to 800 cm/s greatest sensitivity gases
  • +/- 2 to +/- 10 cm/s switch point accuracy
  • 2 to 5 cm/s hysteresis
  • 1 to 5% repeatability
  • 0.1 cm/s x 1/K temperature drift
  • 300 K/min maximum temperature gradient of medium
  • 10 sec power-on delay time
  • Pushbuttons adjustment of the switch point software/programming
  • COM2 transfer type interfaces
  • Internal thread M18 x 1.5 for adapter process connection
  • 316L/1.4404 stainless steel/FKM 8 x 1.5 grade 80 deg shore A o-ring materials
