HKK Chain RC120R1A Riveted Standard Roller Chain, 10 ft OAL, 1-1/2 in Pitch, 7/8 in Dia x 1 in W Roller, Alloy Steel


Description

HKK Chain Roller Chain, Riveted Standard, 1-1/2 in Pitch, 0.437 in Pin Dia, 7/8 in Roller Dia, 1 in Roller Width, 1.382 in Plate Height, 0.187 in Plate Thickness, 80 Links/10 ft, 1 Strand, 310 ft Overall Length, Alloy Steel

HKK Chain Superior Capacity Plus® is a patented process which increases the maximum allowable load up to 30% over standard chains. This increased strength, combined with our standard cold forged solid bushings and rollers make HKK Chain one of the highest quality, longest lasting chains available.

Specifications

Material Alloy Steel
Number of Links 80 Links/10 ft
Number of Strands 1
Overall Length 10 ft
Pin Diameter 0.437 in
Pitch 1-1/2 in
Plate Height 1.382 in
Plate Thickness 0.187 in
Roller Diameter 7/8 in
Roller Width 1 in
Type Riveted Standard

Warranty: Limited

Country of Origin: Japan

Standards and Approvals: ANSI B29.1

Features

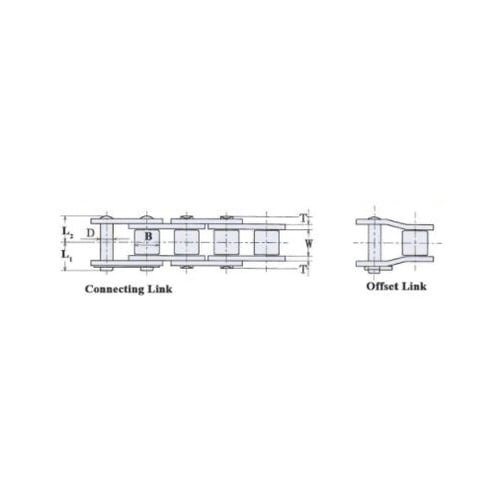

  • One HKK Chain RC120CCL1 full strength standard cottered connecting link is supplied with each 10 ft of chain
  • RC120CHL1 offset link (half link), RC120-RL roller link (inner link) sold separately
  • Chain size 120
