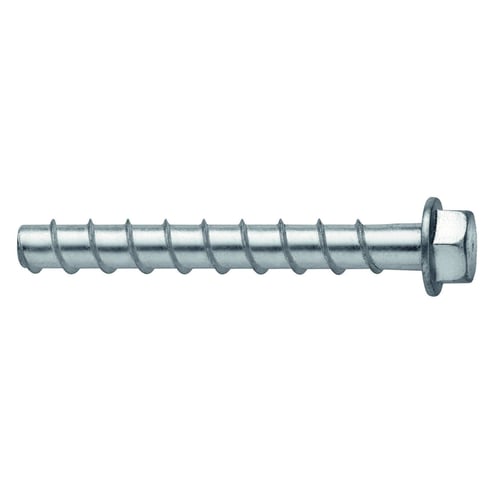

HILTI 418046 Ultimate Performance Screw Anchor, 1/4 in Dia, 3 in OAL, Hex Head Drive, Carbon Steel, 1-5/8 to 2-1/2 in D Min Embedment


Description

HILTI Screw Anchor, Ultimate Performance, 1/4 in Diameter, 3 in Overall Length, Hex Head Drive, Carbon Steel, 1-5/8 to 2-1/2 in Minimum Embedment Depth, Zinc Plated, Applicable Materials: Concrete/Masonry, 180 to 415 lb Shear Strength, 205 to 390 lb Tensile Strength

Specifications

Applicable Materials Concrete/Masonry
Diameter 1/4 in
Finish Zinc Plated
Head Drive Type Hex
Material Carbon Steel
Minimum Embedment Depth 1-5/8 to 2-1/2 in
Overall Length 3 in
Shear Strength 180 to 415 lb
Tensile Strength 205 to 390 lb
Type Ultimate Performance
Application:
For glazing, windows, storefronts, racking, shelving, attaching railings, handrails, ledgers, anchoring formwork and tilt-up braces, sill plates, perimeter walls and seismic braces

Features

  • Highly productive solution for applications requiring an ICC approval for concrete and grout filled CMU block in seismic areas
  • For use with standard ANSI tolerance drill bit, no special tolerance drill bits required
  • Fully removable anchoring solution
  • Suitable for reduced edge distances and spacing
  • Optimized thread design for best-in-class setting performance and superior load values
