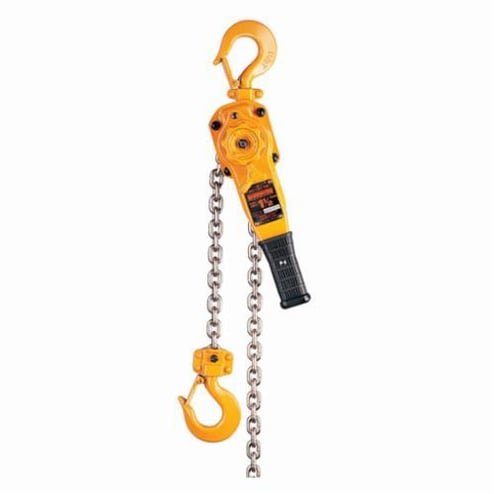

HARRINGTON LB008-15 LB Series Compact Lever Hoist, 0.75 ton Load, 15 ft H Lifting, 54 lb Rated, 0.9 in Hook


Description

HARRINGTON Lever Hoist, Compact, Series: LB Series, 0.75 ton, 15 ft Lifting Height, 11 in Minimum Between Hooks, 0.9 in Hook Opening, 54 lb Pull to Lift, 9.6 in Lever Length, Steel Chain, 1 Reeving, Weston Brake, 11 in L x 4.7 in W x 5.7 in D

Harrington's LB lever hoists combine easy operation with a compact, low headroom design that easily handles real-world demands. Rated the number 1 selling lever hoist in the U.S., these hoists can be used horizontally, vertically, inverted or at any other load angle and have the strength to get the job done.

Specifications

Brake Type Weston
Chain Material Steel
Dimensions 11 in L x 4.7 in W x 5.7 in D
Hook Opening 0.9 in
Lever Length 9.6 in
Lifting Height 15 ft
Load Capacity 0.75 ton
Minimum Between Hooks 11 in
Pull to Lift Rated Load 54 lb
Reeving 1
Series LB Series
Type Compact

Country of Origin: Japan

Standards and Approvals: ASME B30.21 Requirements

Application:
For use in heavy-duty construction work, mining, manufacturing, shipbuilding, day-to-day maintenance and repair

Features

  • Capacities 3/4 ton through 9 ton
  • Compact design makes it a perfect fit for use in tight quarters
  • Steel body is more durable yet lighter weight than die-cast aluminum models
  • Revolutionary freewheeling offers one handed operation
  • 362 deg handle rotation and pivot and swivel top hook for easy rigging
  • Single load chain through 3 tons
  • Rugged, all-steel construction that actually weighs less than comparable aluminum models
  • Positive braking action with Weston-style load brake incorporating two moisture-resistant brake pads with four braking surfaces
  • Protection against dirt and moisture with a totally enclosed brake mechanism
  • Patented spring-loaded freewheel mechanism permits easy adjustment of the load chain and safeguards against accidental freewheeling under load
  • Standard rubber grip for non-slip operation
  • Grade 100 heat-treated load chain is nickel plated for corrosion resistance
  • Forged and heat-treated alloy steel hooks open slowly without fracturing under excessive loads
