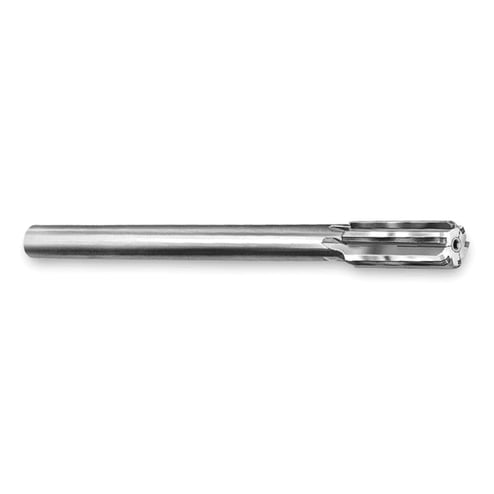

Hannibal 46532 465F Expansion General Purpose Chucking Reamer, 1 in Dia x 10-1/2 in OAL, 7/8 in Dia Straight Shank, Straight Flute


Description

Hannibal Chucking Reamer, Expansion General Purpose, Series: 465F, 1 in Dia, 10-1/2 in Overall Length, Straight Shank, 7/8 in Shank Dia, 8 Flutes, Straight Flute, 1-5/8 in Flute Length, Carbide Tip/Steel Body, Polished, Applicable Materials: Cast Iron, Steel and Non-Ferrous Metal

Specifications

Applicable Materials Cast Iron, Steel and Non-Ferrous Metal
Diameter 1 in
Finish Polished
Flute Length 1-5/8 in
Flute Type Straight
Material Carbide Tip/Steel Body
Number of Flutes 8
Overall Length 10-1/2 in
Series 465F
Shank Diameter 7/8 in
Shank Type Straight
Type Expansion General Purpose

Country of Origin: United States

Standards and Approvals: ASME/ANSI B94.2, NAS 897, USCTI Standards, PROP65: This product can expose you to chemicals including cobalt, which is known to the State of California to cause cancer. Carbide dust is a pulmonary irritant. Use proper ventilation & personal protection. More info: www.P65Warnings.ca.gov

Features

  • The reamer is used to finish machine a previously formed hole to an exact diameter with a smooth finish
  • Carbide tipped reamers are especially appropriate for close tolerance reaming - because carbide is very highly resistant to wear, the reamer will produce accurate hole size and a smooth finish far longer than high speed steel or cobalt
  • The reamer is an end cutting tool, cutting only on the chamfer's edge at the outside diameter of the preformed hole
  • Geometry and carbide grade appropriate for material being machined
  • Higher feeds and speeds due to heat resistant cutting edge - reduces machine cycle time per part
  • Consistent quality - maintains hole size and surface finish far longer
  • Longer tool life - reduces down time for tool changes
  • Superior performance over high speed steel and cobalt - good in a wide variety of materials
  • Carbide tip brazed to tough hardened alloy steel body
  • Polished flutes for easy chip flow
  • Precision ground cutting edges
  • 0.013 in guaranteed minimum expansion
  • 1-5/8 in L carbide
  • The standard 45 deg chamfer angle provides effective cutting action for most materials
  • -0.0005 in shank diameter tolerance
  • 0.0003 in tool diameter tolerance
