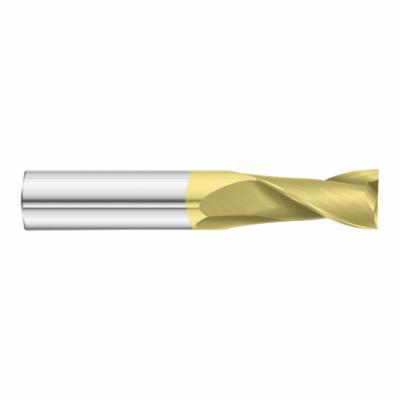

Fullerton 32342 3215 Center Cutting Single End Standard Length Square End End Mill, 3/16 in Dia Cutter, 5/8 in Length of Cut, 2 Flutes, 3/16 in Dia Shank, 2 in OAL, TiN Coated


Description

Fullerton End Mill, Center Cutting Single End Standard Length Square End, Series: 3215, 3/16 in Cutter Dia, 2 in Overall Length, 5/8 in Length of Cut, 2 Flutes, Spiral Flute, 3/16 in Shank Dia, Right Hand Cutting, 30 deg Helix Angle, ISO Code: 9001:2008, Dura Carb, TiN Coated

Fullerton's general purpose, premium quality 2-flute solid carbide end mill. The 3215 is manufactured consistently to the highest quality standards and tolerances. Offered in an extensive variety of configurations.

Specifications

Cutter Diameter 3/16 in
Cutting Direction Right Hand
Finish TiN Coated
Flute Type Spiral
Helix Angle 30 deg
ISO Code 9001:2008
Length of Cut 5/8 in
Material Dura Carb
Number of Flutes 2
Overall Length 2 in
Series 3215
Shank Diameter 3/16 in
Type Center Cutting Single End Standard Length Square End

Country of Origin: United States

Application:
General Purpose

Features

  • h6 shank diameter tolerance
  • +0.000 in, -0.002 in/+0.000 mm, -0.05 mm cutter diameter tolerance
