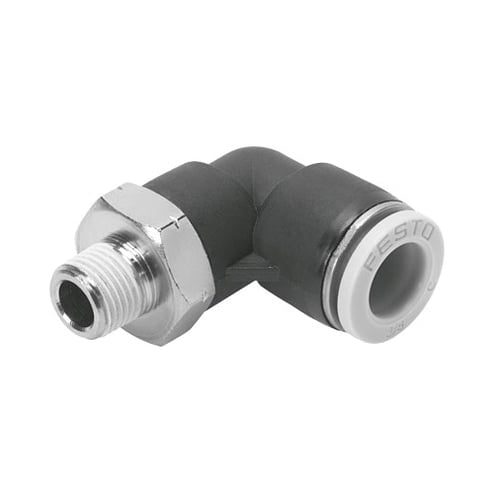

Festo 533292 QBL Quick Basic Push-In L-Fitting, 0.177 in Nominal, 1/8-27 MNPT x 1/4 in Tube, -13.8 to 145 psi Pressure, PBT/Brass


Description

Festo Push-In L-Fitting, Quick Basic, Series: QBL, 0.177 in Nominal, 1/8-27 MNPT x 1/4 in Tube, 1/2 in Hex, -13.8 to 145 psi, 32 to 140 deg F, PBT/Brass, Nickel Plated

Specifications

End Style 1/8-27 MNPT x 1/4 in Tube
Finish Nickel Plated
Hex Size 1/2 in
Material PBT/Brass
Nominal Size 0.177 in
Pressure Rating -13.8 to 145 psi
Series QBL
Temperature Rating 32 to 140 deg F
Type Quick Basic

Standards and Approvals: FN 940070 CRC-1 Standard, RoHS Compliant

Features

  • 360 deg orientable and male thread with external hexagon
  • Low corrosion stress
