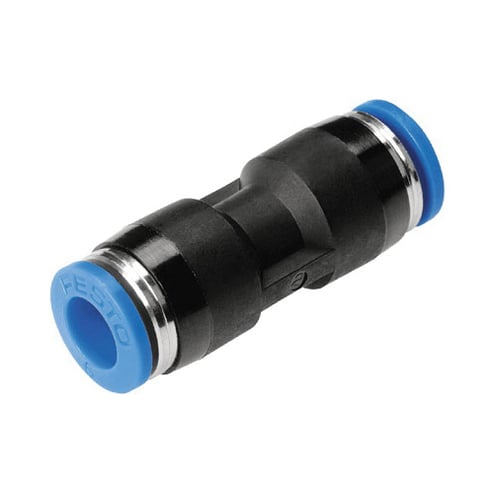

Festo 153035 QS Series Push-In Straight Connector, 8.7 mm Nominal, 12 mm Tube, -0.95 to 14 bar Pressure, PBT

SKU: FESTO 153035

Manufacturer Part Number: 153035

Brand: Festo

Description

Festo Push-In Straight Connector, Series: QS Series, 8.7 mm Nominal, 12 mm Tube, 47.8 mm Length, -0.95 to 14 bar, -10 to 80 deg C, PBT, Nickel Plated

Standards and Approvals: FN 940070 CRC-1 Standard, RoHS Compliant

The stainless steel retaining claw within the fitting holds the tubing securely without damaging its surface
Vibration and pressure surges are safely absorbed
A nitrile rubber sealing ring guarantees a perfect seal between standard OD tubing and the body of the fitting
All brass parts of Festo push-in fittings are nickel plated and are thus highly resistant to corrosion
The tapered ISO R-threads have a self-sealing PTFE coating, which allows the fitting to be re-used up to five times without the need for additional sealing components
The fitting can be aligned after assembly
Low corrosion stress

Specification Sheet
