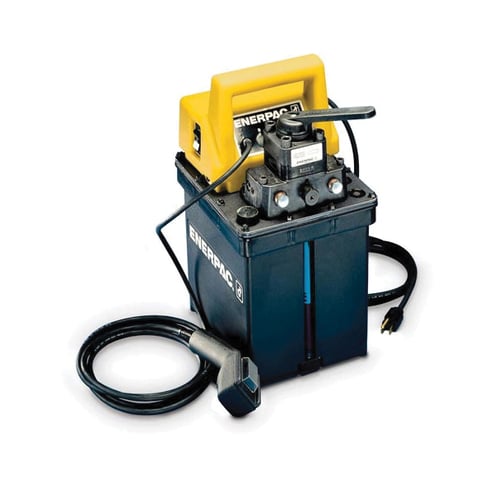

Enerpac® PEJ1301B 2-Speed 3-Position 3-Way Submerged Electric Hydraulic Pump, 0.5 hp, 1.5 gal Reservoir, 20 cu-in/min Flow Rate, 10000 psi Pressure


Description

Enerpac® Electric Hydraulic Pump, 2-Speed 3-Position 3-Way Submerged, Series: PE Series, 1.5 gal Reservoir, 0.5 hp, 20 cu-in/min Flow Rate, 10000 psi Pressure, 115 VAC, 13 A, 50/60 Hz Frequency, 16 in Overall Height

Specifications

Amperage Rating 13 A
Flow Rate 20 cu-in/min
Frequency Rating 50/60 Hz
Horsepower 0.5 hp
Overall Height 16 in
Pressure Rating 10000 psi
Reservoir Capacity 1.5 gal
Series PE Series
Type 2-Speed 3-Position 3-Way Submerged
Voltage Rating 115 VAC

Country of Origin: United States

Standards and Approvals: CE Certified, EAR99, ETC Certified, TUV Certified

Application:
For use with single acting cylinders

Features

  • The submerged pump is best suited to power small to medium size cylinders or hydraulic tools or whenever quiet, intermittent duty cycle is needed
  • With its low sound level and the addition of the optional oil cooler, the submerged pump is suited to light production work as well
  • Its lightweight and compact design also make it ideal for applications which require some transport of the pump
  • Two speed operation reduces cycle times for improved productivity
  • Powerful 0.5 hp induction motor is submerged in the oil reservoir to run cooler, protect the motor, simplify the pump interface, save space and reduce noise
  • Large 1.5 gal reservoir allows operation of a wide range of cylinders
  • 24 VDC remote pendant control on certain models for safer operation
  • Externally adjustable relief valve allows control of operating pressure without opening the pump
  • 40 um internal return line filter keeps oil clean, promoting longer pump life
  • Full length side tube for easy monitoring of oil level
