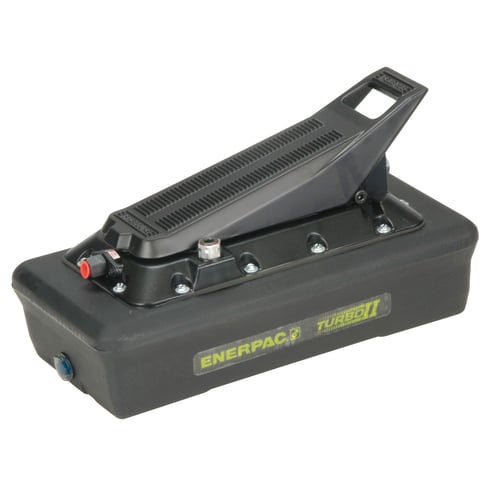

Enerpac® PATG-1105N Compact Air Powered Hydraulic Pump, 12 scfm Air Flow, 60 to 10 cu-in/min Oil Displacement Rating, 1/4-18 FNPT Air Inlet


Description

Enerpac® Air Powered Hydraulic Pump, Compact, Series: PA, 4.2 L, 12 scfm, 60 to 10 cu-in/min Oil Displacement, 1/4-18 FNPT Air Inlet, 230 cu-in Oil, 1 gal Reservoir, 40 to 125 psi Air, 76 dB, 9.04 in L, 8.22 in H

Specifications

Air Flow Rate 12 scfm
Air Inlet 1/4-18 FNPT
Air Pressure 40 to 125 psi psi
Capacity 4.2 L L
Height 8.22 in in
Length 9.04 in in
Oil Capacity 230 cu-in
Oil Displacement Rating 60 to 10 cu-in/min
Reservoir Capacity 1 gal gal
Series PA
Sound Level 76 dB dB
Type Compact

Country of Origin: United States

Application:
Industrial and Commercial Applications

Features

  • Enerpac high pressure PA series turbo II air driven hydraulic pumps are easily operated by hand or foot
  • External adjustable pressure relief valve (behind sight glass)
  • Return-to-tank port for use in remote valve applications
  • Internal pressure relief valve provides overload protection
  • Quieter operation, single speed
  • 2.8 to 8.8 bar enables pump to start at extremely low pressure
  • High efficiency cast aluminium air motor
  • Reinforced heavy-duty Lightweight reservoir for applications in tough environments
  • Air pendant for remote control operation
  • 1 phase, 10000 psi
  • 3/8-18 FPT outlet size
  • Advance, hold, retract valva type
  • Easily operated by hand or by foot
  • Treadle 3/3 valve operation
