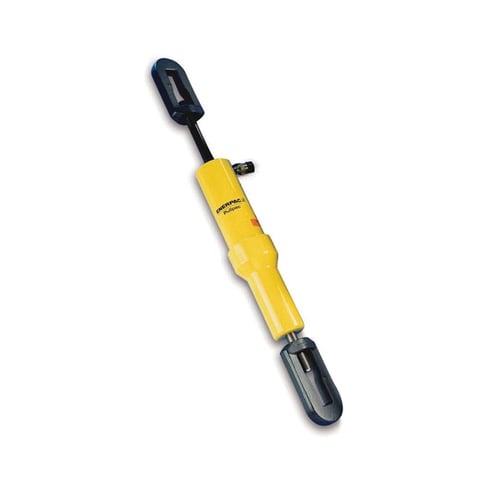

Enerpac® BRP106L Solid Plunger Hydraulic Pull Cylinder, 5.91 in L Stroke, 11.6 ton Retract Max Force, Single Acting/Spring Return Function


Description

Enerpac® Hydraulic Pull Cylinder, Solid Plunger, Series: BRP Series, 5.91 in Stroke Length, 11.6 ton Retract Maximum Force, Function: Single Acting/Spring Return, 3/8-18 NPTF Port, 28.46 in Extended Height, 22.56 in Retracted Height, 10000 psi Pressure, Steel

Specifications

Extended Height 28.46 in
Function Single Acting/Spring Return
Material Steel
Maximum Force 11.6 ton Retract
Port Size 3/8-18 NPTF
Pressure Rating 10000 psi
Retracted Height 22.56 in
Series BRP Series
Stroke Length 5.91 in
Type Solid Plunger

Warranty: Limited

Country of Origin: Netherlands

Standards and Approvals: EAR99, ETC Certified

Features

  • High strength alloy steel construction
  • Plunger blow out protection to prevent over extension
  • Hard polished chrome plunger for long life
  • CR400 coupler and dust cap included on all models
  • Baked enamel finish for increased corrosion resistance
  • Plunger wiper reduces contamination, extending cylinder life
  • Single acting spring return
  • Replaceable links
