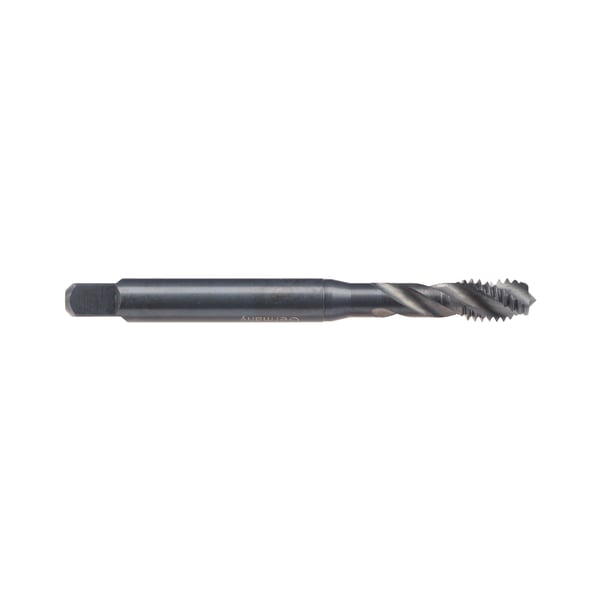

Emuge BU503200.5009 Enorm 1-VA BU503200 Form C Reinforced Shank Spiral Flute Tap, Right Hand Cutting, 1/4-20 Thread, Modified Bottoming Chamfer, Right Hand Flute Direction, 3 Flutes, Ne2 Coated, HSS-E


Description

Emuge Spiral Flute Tap, Form C Reinforced Shank, Series: Enorm 1-VA BU503200, Measurement System: Imperial, UNC, 1/4-20, Modified Bottoming Chamfer, 3 Flutes, HSS-E, Ne2 Coated, Class of Fit: 2B, Right Hand Cutting, 0.669 in Thread Length, 3.15 in Overall Length, 0.255 in Shank Dia, Right Hand Flute Direction, Steel, Stainless Steel and Cast Iron Material Application, No Through Coolant (Yes/No)

Specifications

Chamfer Type Modified Bottoming
Class of Fit 2B
Cutting Direction Right Hand
Finish/Coating Ne2 Coated
Flute Direction Right Hand
Material HSS-E
Material Application Steel, Stainless Steel and Cast Iron
Measurement System Imperial
Number of Flutes 3
Overall Length 3.15 in
Series Enorm 1-VA BU503200
Shank Diameter 0.255 in
Thread Length 0.669 in
Thread Size 1/4-20
Thread Standard UNC
Through Coolant (Yes/No) No
Type Form C Reinforced Shank

Country of Origin: Germany

Standards and Approvals: DIN/ANSI Standard, ASME B1.1, PROP65: This product contains Cobalt, a chemical known to the State of California to cause cancer

Application:
For blind hole threads in long chipping materials

Features

  • The fast spiral flute (35 deg) provides good chip removal from blind holes
  • VA designates that the tool is designed for stainless steel and steel materials
  • NE2 surface treatment - steam oxide layer is applied to the tool surface
  • This oxide layer protects the surface and acts as a good carrier of lubricants
  • Cold welding which occurs especially with low carbon, soft steels, can be prevented with NE2 surface treatment
  • DIN/ANSI taps made with Emuge trademark long shanks - DIN length for extra reach and ANSI shanks
