Pramet 8244241 Double Sided Insert, ANSI Code: CNMG432-NMR:T9415, CNMG Insert, P Material Grade, 12 Insert, Rhombic Shape, Negative Rake, For Use On Steel and Cast Steel, Manufacturer's Grade: T9415


Description

Pramet, 8244241, Insert, Double Sided, CNMG Insert, 12 Insert, Rhombic Shape, 0.031 to 0.197 in Maximum Depth of Cut, 0.5 in Inscribed Circle, 0.187 in Thickness, 0.508 in Length, Negative Rake, NMR Chipbreaker, 0.031 in Corner Radius, 0.203 in Diameter Hole, Manufacturer's Grade: T9415, ANSI Code: CNMG432-NMR:T9415, ISO Code: CNMG120408E-NMR:T9415, 80 deg Included Angle, 0 deg Relief Angle, CVD Coated, Material Grade: P, For Use On: Steel and Cast Steel

Specifications

ANSI Code CNMG432-NMR:T9415

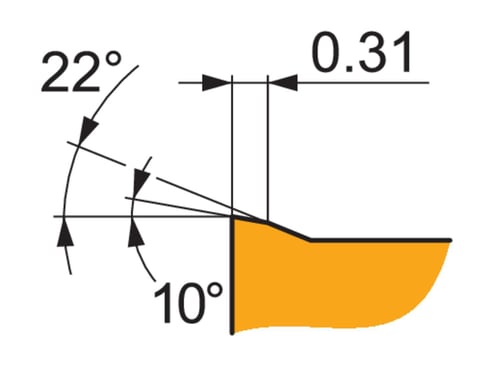

Chipbreaker NMR
Corner Radius 0.031 in
Finish CVD Coated
For Use On Steel and Cast Steel
Hole Diameter 0.203 in
Included Angle 80 deg
Inscribed Circle 0.5 in
Insert Size 12
Insert Style CNMG
ISO Code CNMG120408E-NMR:T9415
Length 0.508 in
Manufacturer's Grade T9415
Material Grade P
Maximum Depth of Cut 0.031 to 0.197 in
Rake Negative
Relief Angle 0 deg
Shape Rhombic
Thickness 0.187 in
Type Double Sided

Country of Origin: Czech Republic

Standards and Approvals: ANSI Standards, ISO Standards, PROP65

Application:
For fine to heavy machining of steels
