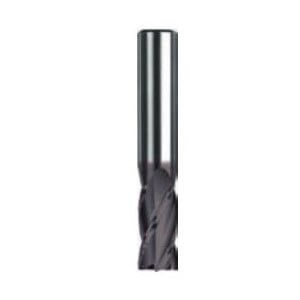

Dormer 7648752 S234 Type N Medium Cut Length Square End Mill, 1/8 in Dia Cutter, 1/2 in Length of Cut, 4 Flutes, 1/8 in Dia Shank, 1-1/2 in OAL, AlTiN Coated


Description

Dormer Square End Mill Dormer, Type N Medium Cut Length, Series: S234, 1/8 in Diameter Cutter, 1-1/2 in Overall Length, 1/2 in Length of Cut, 4 Flutes, Spiral Flute, 1/8 in Shank Diameter, Right Hand Cutting Direction, 30 deg Helix Angle, Straight Shank, Carbide, AlTiN Coated

Dormer Pramets new range of solid carbide end mills represent a new direction in our branding of end mills products all under the Dormer brand name. These solid carbide end mills are suited for the most common milling operations such as slotting, plunging, side and face milling, as well as ramping and copy milling in a wide range of materials.

Specifications

Cutter Diameter 1/8 in
Cutting Direction Right Hand
Finish AlTiN Coated
Flute Type Spiral
Helix Angle 30 deg
Length of Cut 1/2 in
Material Carbide
Number of Flutes 4
Overall Length 1-1/2 in
Series S234
Shank Diameter 1/8 in
Shank Type Straight
Type Type N Medium Cut Length

Country of Origin: United States

Standards and Approvals: ANSI Specified, PROP65: This product contains chemicals known to the State of California to cause cancer. For more information: www.P65Warnings.ca.gov, CSA Approved

Application:
Slotting, Ramping and Plunging

Features

  • Consistent performance and repeatability in multiple material applications across a diverse array of machines and conditions
  • The designs of these products enable them to deliver high quality and performance at an exceptional value
  • AlTiN coating increases surface hardness, improves chip flow and tool life allowing higher metal removal rates
