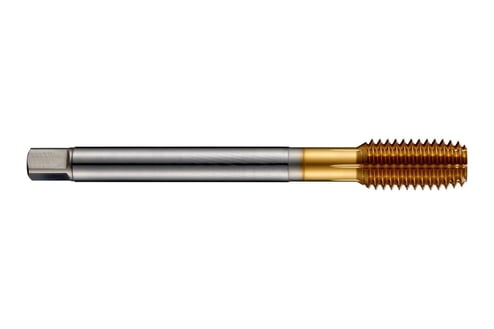

Dormer 7174111 E287 Fluteless Oil Grooves Machine Forming Tap, 3/8-16 Thread


Description

Dormer Machine Forming Tap, Fluteless Oil Grooves, Series: E287, Measurement System: Imperial, 3/8-16 Thread, UNC Thread Standard, 20 mm Thread Length, 100 mm Overall Length, 5 Flutes, Right Hand Cutting Direction, Class of Fit: 2BX, 10 mm Shank Diameter, 8.8 mm Tap Drill, 8 mm Square, HSS-E, TiN Coated

Dormer range of forming taps is a high quality, comprehensive program with designs and thread forms for the majority of applications in all major industry segments. Dormer forming taps provide dependability and reliability, creating threads that offer both dynamic strength and high dimensional accuracy.

Specifications

Class of Fit 2BX
Cutting Direction Right Hand
Finish/Coating TiN Coated
Material HSS-E
Measurement System Imperial
Number of Flutes 5
Overall Length 100 mm
Series E287
Shank Diameter 10 mm
Square Size 8 mm
Tap Drill Size 8.8 mm
Thread Length 20 mm
Thread Size 3/8-16
Thread Standard UNC
Type Fluteless Oil Grooves

Country of Origin: Germany

Standards and Approvals: DIN 2184-1, PROP65: This product contains chemicals known to the State of California to cause cancer. For more information: www.P65Warnings.ca.gov

Application:
For through hole and blind hole applications

Features

  • The range has been expanded with thread forms for MF, UNC and UNF
  • In addition, more variants with oil grooves have been added as well as through coolant taps and a high performance solid carbide tap
  • High performance and productivity in a wide range of materials
  • Produces a stronger thread than cutting taps with increased load bearing capabilities
  • Greater accuracy of finished thread
  • Lower surface roughness
  • Highly stable tool design means less risk of tap breakage and optimum process security
  • Thread depths up to 3.5xD
  • First choice for vertical through hole machining
  • Chamfer form C for both blind and through holes
  • TiN coating for longer tool life and suitable for many materials
  • No coolant
