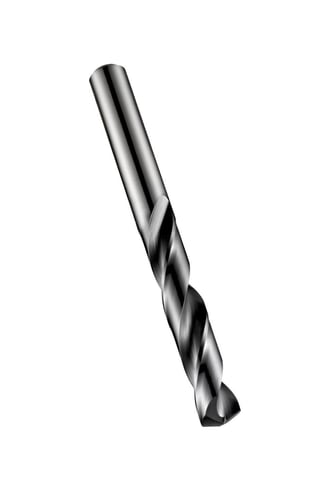

Dormer 5980034 Force X R454 Multi-Application Standard Length Jobber Length Drill Bit, 47/64 in Drill - Fraction, 0.7344 in Drill - Decimal Inch, 140 deg Point, Carbide, TiAlN Coated


Description

Dormer Jobber Length Drill Bit, Multi-Application Standard Length, Series: Force X R454, Imperial, 47/64 in Drill - Fraction, 0.7344 in Drill - Decimal Inch, 153 mm Overall Length, 5XD Cutting Depth, 2 Flutes, CTW Flute, 99 mm Flute Length, 20 mm Dia x 50 mm L Shank, Straight Shank, 140 deg Point, 4-Facet/Self-Centering/Split Point, Right Hand Cutting Direction, Carbide Cutting Edge, No Through Coolant, Carbide, TiAlN Coated, Black/Gray, Applicable Materials: Magnetic Soft Steel, Structural Steel/Case Carburizing Steel, Plain Carbon Steel, Alloy Steel, Alloy Steel/Hardened And Tempered Steel, Alloy Steel Hardened, Free Machining Stainless Steel, Austenitic, Ferritic + Austenitic, Martensitic, Precipitation Hardened, Lamellar Graphite, Nodular Graphite/Malleable Cast Iron, Titanium Unalloyed, Titanium Alloyed, Copper, Brass, Bronze, High Strength Bronze, Aluminum Magnesium Unalloyed and Aluminum Alloyed

Dormer Pramet’s force X program is a new range of versatile solid carbide drills designed to provide an excellent level of performance with outstanding economy. Consistent performance and repeatability in multiple applications across diverse machines and conditions. The family offers ranges of TiAlN coated drills available in 3D and 5D lengths in both solid and coolant feed variants and an 8D version with coolant feed. Their design enables them to deliver high performance across a wide variety of materials, making them the ideal choice for general engineering and sub-contract environments

Specifications

Applicable Materials Magnetic Soft Steel, Structural Steel/Case Carburizing Steel, Plain Carbon Steel, Alloy Steel, Alloy Steel/Hardened And Tempered Steel, Alloy Steel Hardened, Free Machining Stainless Steel, Austenitic, Ferritic + Austenitic, Martensitic, Precipitation Hardened, Lamellar Graphite, Nodular Graphite/Malleable Cast Iron, Titanium Unalloyed, Titanium Alloyed, Copper, Brass, Bronze, High Strength Bronze, Aluminum Magnesium Unalloyed and Aluminum Alloyed
Color Black/Gray
Cutting Depth 5XD
Cutting Direction Right Hand
Cutting Edge Material Carbide
Drill Diameter Measurement System Imperial
Drill Size - Decimal Inch 0.7344 in
Drill Size - Fraction 47/64 in
Finish TiAlN Coated
Flute Length 99 mm
Flute Type CTW
Material Carbide
Number of Flutes 2
Overall Length 153 mm
Point Angle 140 deg
Point Type 4-Facet/Self-Centering/Split
Series Force X R454
Shank Size 20 mm Dia x 50 mm L
Shank Type Straight
Through Coolant (Yes/No) No
Type Multi-Application Standard Length

Country of Origin: Brazil

Standards and Approvals: DIN 6537 L/6535 HA, PROP65: This product contains chemicals known to the State of California to cause cancer. For more information: www.P65Warnings.ca.gov

Application:
For general drilling applications

Features

  • Self-centering 4-facet split point and CTW flute construction for enhanced penetration rate
  • TiAlN coating increases wear resistance, improves tool life at high RPM
  • High productivity in a wide range of materials
