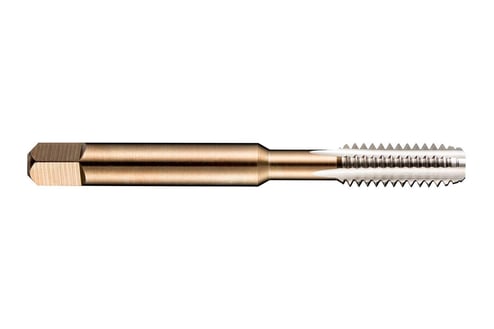

Dormer 5974271 E061 Straight Flute Tap Set, Right Hand Cutting, Bottoming/Plug/Taper Chamfer, H3 Thread Limit


Description

Dormer Tap Set, Straight Flute, Series: E061, Measurement System: Imperial, 3 Piece, 3/8-16, Ground/UNC, 0.81 in Thread Length, 2-15/16 in Overall Length, 4 Flutes, Right Hand Cutting, Class of Fit: 2B/3B, 0.381 in Shank Dia, Bottoming/Plug/Taper Chamfer, H3 Thread Limit, 5/16 in Tap Drill, 0.286 in Square Size, HSS, Bright

Specifications

Chamfer Bottoming/Plug/Taper
Class of Fit 2B/3B
Cutting Direction Right Hand
Finish/Coating Bright
Material HSS
Measurement System Imperial
Number of Flutes 4
Number of Pieces 3
Overall Length 2-15/16 in
Series E061
Shank Diameter 0.381 in
Size 3/8-16
Square Size 0.286 in
Tap Drill Size 5/16 in
Thread Length 0.81 in
Thread Limit H3
Thread Standard Ground/UNC
Type Straight Flute

Includes: 0348529 Taper, 0348536 Plug and 0348543 Bottoming Hand Taps

Country of Origin: Brazil

Standards and Approvals: ANSI Specified, CSA Approved

Application:
For through hole and blind hole applications

Features

  • The most versatile taps for hand use or machine tapping in a wide variety of materials
  • A medium alloyed high speed steel that has good machinability and good performance
  • HSS exhibits hardness, toughness and wear resistance characteristics that make it attractive in a wide range of applications
