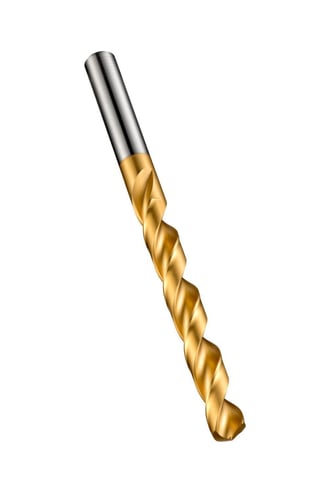

Dormer 5970407 A510 Heavy Duty Jobber Length Drill Bit, 14 mm Drill - Metric, 0.5512 in Drill - Decimal Inch, 130 deg Point, HSS, TiN Coated


Description

Dormer Jobber Length Drill Bit, Heavy Duty, Series: A510, Metric/Imperial, 14 mm Drill - Metric, 0.5512 in Drill - Decimal Inch, 160 mm Overall Length, 4XD Cutting Depth, 2 Flutes, Spiral Flute, 108 mm Flute Length, 14 mm Shank, Straight Shank, 130 deg Point, ADX Point, Right Hand Cutting Direction, HSS Cutting Edge, No Through Coolant, HSS, TiN Coated, Gold, Applicable Materials: Magnetic Soft Steel, Structural Steel/Case Carburizing Steel, Plain Carbon Steel, Alloy Steel, Alloy Steel/Hardened and Tempered Steel, Free Machining, Austenitic and Ferritic+Austenitic, Martensitic Stainless Steel, Lamellar Graphite, Nodular Graphite/M, Titanium Unalloyed, Titanium Alloyed, Nickel Unalloyed, Nickel Alloyed, Copper, Brass, Bronze, High Strength Bronze, Aluminum Magnesium Unalloyed, Aluminum Alloyed, Thermoplastics, Thermosetting Plastics and Reinforced Plastic Materials

The A510 is the primal ADX drill. This unique Dormer HSS is unrivaled in productivity. The ADX is characterized by its ability to work with high feed rates with a wide range of material and type of machine to be drilled. The approximately 25% higher feed in combination with the +/- 40% higher cutting speed than standard twist drills ensure that the chip formation becomes better and drills much faster. The costs per drilled hole are quickly reduced by using this high productive twist drill. In the meantime, VHM drills are often also chosen for high productivity. When the stability or available power is insufficient for VHM, the ADX is the better choice. This cylindrical drill has a TiN coating for better wear resistance.

Specifications

Applicable Materials Magnetic Soft Steel, Structural Steel/Case Carburizing Steel, Plain Carbon Steel, Alloy Steel, Alloy Steel/Hardened and Tempered Steel, Free Machining, Austenitic and Ferritic+Austenitic, Martensitic Stainless Steel, Lamellar Graphite, Nodular Graphite/M, Titanium Unalloyed, Titanium Alloyed, Nickel Unalloyed, Nickel Alloyed, Copper, Brass, Bronze, High Strength Bronze, Aluminum Magnesium Unalloyed, Aluminum Alloyed, Thermoplastics, Thermosetting Plastics and Reinforced Plastic Materials
Color Gold
Cutting Depth 4XD
Cutting Direction Right Hand
Cutting Edge Material HSS
Drill Diameter Measurement System Metric/Imperial
Drill Size - Decimal Inch 0.5512 in
Drill Size - Metric 14 mm
Finish TiN Coated
Flute Length 108 mm
Flute Type Spiral
Material HSS
Number of Flutes 2
Overall Length 160 mm
Point Angle 130 deg
Point Type ADX
Series A510
Shank Size 14 mm
Shank Type Straight
Through Coolant (Yes/No) No
Type Heavy Duty

Country of Origin: France

Standards and Approvals: DIN 338

Application:
For general drilling applications

Features

  • High Speed Steel increases hot hardness and improves tool life
