Pramet 6753873 Turning Insert, ANSI Code: CCMT 433-RM:T9325, CCMT Insert, Material Grade: K, M, P, S, 433 Insert, Diamond Shape, 12 Seat, Positive Rake, For Use On Cast Iron, Stainless Steel, Steel and Titanium/Super Alloys, Carbide


Description

Pramet Turning Insert, CCMT Insert, 433 Insert, Diamond, 4.5 mm Maximum Depth of Cut, 12.7 mm Inscribed Circle, 4.76 mm Thickness, 12.9 mm Length, 12 Seat, Positive Rake, RM Chipbreaker, 1.2 mm Corner Radius, 5.6 mm Hole Dia, Manufacturer's Grade: T9325, ANSI Code: CCMT 433-RM:T9325, ISO Code: CCMT 120412E-RM:T9325, 80 deg Included Angle, 7 deg Relief Angle, Carbide, CVD Coated, Material Grade: K, M, P, S, For Use On: Cast Iron, Stainless Steel, Steel and Titanium/Super Alloys

Specifications

ANSI Code CCMT 433-RM:T9325

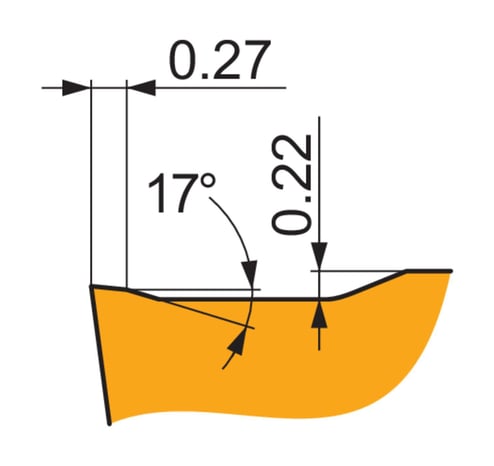

Chipbreaker RM
Corner Radius 1.2 mm
Finish CVD Coated
For Use On Cast Iron, Stainless Steel, Steel and Titanium/Super Alloys
Hole Diameter 5.6 mm
Included Angle 80 deg
Inscribed Circle 12.7 mm
Insert Size 433
Insert Style CCMT
ISO Code CCMT 120412E-RM:T9325
Length 12.9 mm
Manufacturer's Grade T9325
Material Carbide
Material Grade K, M, P, S
Maximum Depth of Cut 4.5 mm
Rake Positive
Relief Angle 7 deg
Seat Size 12
Shape Diamond
Thickness 4.76 mm

Country of Origin: Czech Republic

Standards and Approvals: PROP65: This product contains chemicals known to the State of California to cause cancer. For more information: www.P65Warnings.ca.gov

Application:
Roughing and Semi-Roughing

Features

  • T9325 grade functionally gradient substrate
  • Relatively low content of cobalt binder phase
  • Thick MT-CVD coating
  • Highly versatile material with very good operational reliability
  • Special surface finish for coating
  • Medium and higher cutting speed
  • Continuous and interrupted cut
  • Unfavorable cutting conditions, continuous and/or interrupted cuts
