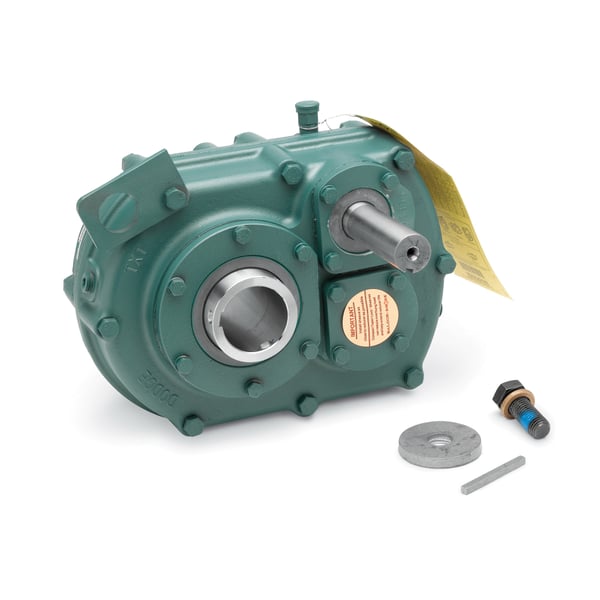

TXT725AS Dodge® 245575 Double Reduction Screw Conveyor Speed Reducer, Shaft Input, Bore Output, 29.9 hp, 15:1 Gear


Description

Dodge® Screw Conveyor Speed Reducer, Double Reduction, 15:1 Gear Ratio, 29.9 hp, Shaft Input, Bore Output, 1-15/16 in Dia Input, 2-15/16 in Output, 1925 rpm Input Maximum Speed, Oil Lubrication, Shaft Mount, Cast Iron, Gray, 18.31 in W x 13.13 in H

Dodge® Torque-Arm™ (SCXT) is a helical gear reducer for screw conveyor applications. This unit mounts directly to the trough end of the screw, using the optional adapter and drive shaft. It offers a number of accessories available for the toughest application.

Specifications

Dimensions 18.31 in W x 13.13 in H
Finish Gray
Gear Ratio 15:1
Horsepower 29.9 hp
Input Maximum Speed 1925 rpm
Input Size 1-15/16 in Dia
Input Type Shaft
Lubrication Type Oil
Material Cast Iron
Mounting Type Shaft
Output Size 2-15/16 in
Output Type Bore
Type Double Reduction

Country of Origin: United States

Standards and Approvals: ABMA, AGMA, ATEX, BSA, CEMA, EASA, MHI, MPTA, NEMA, NSSSGA, PTDA, RoHS Compliant, SME, SWE, TUV Certified

Application:
Aggregate and Cement, Chemical, Oil and Gas, Water and Wastewater, Paper and Forest, Mining, Unit and Baggage Handling Industries, Apron Feeder, Belt Conveyor, Bucket Conveyor, Drag Conveyor, Ribbon Mixer, Roller Bed, Screw Conveyor and Vibratory Feeder

Features

  • Heavy duty sealing system
  • Steel motor mount system
  • Screw conveyor trough end adapter
  • Pre-drilled drive shafts
  • Straight bore configuration with stock drive shafts for most CEMA designed screws
  • 1925 rpm input/75 rpm output
  • Case size: 5
  • Size: SCXT5C
