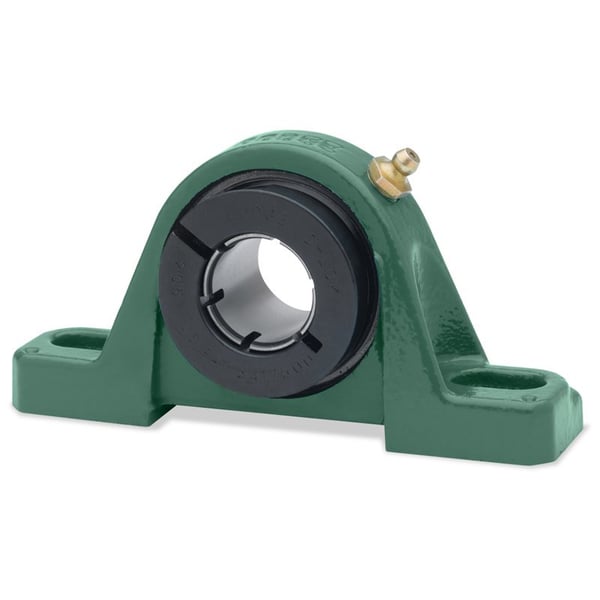

Dodge® 128482 212 Medium Duty Pillow Block Ball Bearing Unit, 2-3/16 in Dia Bore, 6.88 to 7.94 in L Bolt Center-to-Center, 2-3/4 in Base to Bore Centerline, 9-1/2 in OAL x 5.4 in OAH


Description

Dodge® Pillow Block Ball Bearing Unit, Medium Duty, Series: 212, 2-3/16 in Bore, 6.88 to 7.94 in Bolt Center-to-Center Length, 2-3/4 in Base to Bore Centerline, 9-1/2 in Overall Length, 2.38 in Overall Width, 5.4 in Overall Height, Two-Bolt Base Mounting, Round Bore, 2.37 in Base Width, D-LOK® Concentric Clamp Collar Locking Device, Single Lip Seal, Non-Expansion (Fixed) Expansion, 11791 lb Dynamic/8100 lb Static Load, 225 to 400 deg F, 3500 rpm Maximum, Steel, Powder Coated

For concentric grip on the shaft and less vibration at higher speeds, specify Dodge® D-LOK® normal- or medium-duty mounted ball bearings. These unique, concentric collar bearings are engineered with features that assure you superior holding power with improved concentricity. Even at high speeds, the D-LOK® bearing grips the shaft tighter and more uniformly for less vibration.

Specifications

Base to Bore Centerline 2-3/4 in
Base Width 2.37 in
Bolt Center-to-Center Length 6.88 to 7.94 in
Bore Diameter 2-3/16 in
Bore Type Round
Expansion Type Non-Expansion (Fixed)
Finish Powder Coated
Load Capacity 11791 lb Dynamic/8100 lb Static
Locking Device D-LOK® Concentric Clamp Collar
Material Steel
Maximum Speed 3500 rpm
Mounting Type Two-Bolt Base
Overall Height 5.4 in
Overall Length 9-1/2 in
Overall Width 2.38 in
Seal Type Single Lip
Series 212
Temperature Rating 225 to 400 deg F
Type Medium Duty

Warranty: Limited

Country of Origin: United States

Application:
Air Handling, Unit Handling, Food and Beverage, Paper, Forest Products, Automotive, Chemical, Packaging and Processing

Features

  • Precision-hardened and honed inner and outer rings
  • New rugged housing design
  • Normal duty wide inner ring
  • D-LOK® locking mechanism
  • Dual guard positive contact seal including rubberized flingers
  • Stronger and flexible ball retainer
  • Simplified anti-rotation device
  • Electrostatically applied epoxy paint
