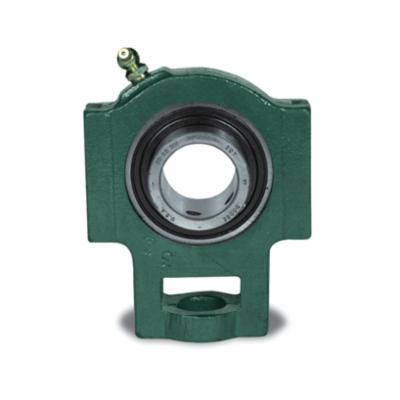

Dodge® 125538 206 Intermediate Duty Narrow Slot Non-Expansion Single Lip Value Line Take-Up Set Screw Ball Bearing, 1-3/16 in Dia Bore, 4.31 in L x 1-17/32 in W x 4.13 in H, 4368 lb Dynamic/2538 lb Static Load


Description

Dodge® Take-Up Set Screw Ball Bearing, Intermediate Duty Narrow Slot Non-Expansion Single Lip Value Line, Series: 206, 1-3/16 in Bore, 4.31 in Length, 1-17/32 in Width, 4.13 in Height, 4368 lb Dynamic/2538 lb Static Load, For Use With: NS308 Narrow Slot Take-Up Frames, Steel Bearing, Powder Coated

For over 65 years, Dodge® has provided innovative solutions for the industry's toughest mounted bearing applications. This experience led to the design of the most advanced mounted ball bearing product line in the industry. Dodge® ball bearings are built in our state-of-the-art facility in Rogersville, Tennessee using the latest manufacturing technologies to produce the highest quality product available on the market today.

Specifications

Bearing Material Steel
Bore Diameter 1-3/16 in
Finish Powder Coated
Height 4.13 in
Length 4.31 in
Load Capacity 4368 lb Dynamic/2538 lb Static
Series 206
Suitable For Use With NS308 Narrow Slot Take-Up Frames
Type Intermediate Duty Narrow Slot Non-Expansion Single Lip Value Line
Width 1-17/32 in

Country of Origin: United States

Features

  • 65 deg set screw locking system
  • Wide inner ring design
  • Fiberglass reinforced nylon cage
  • Grade 10 balls for quiet operation
  • Proguard™ single lip seal
  • No groove in housing for end cover
