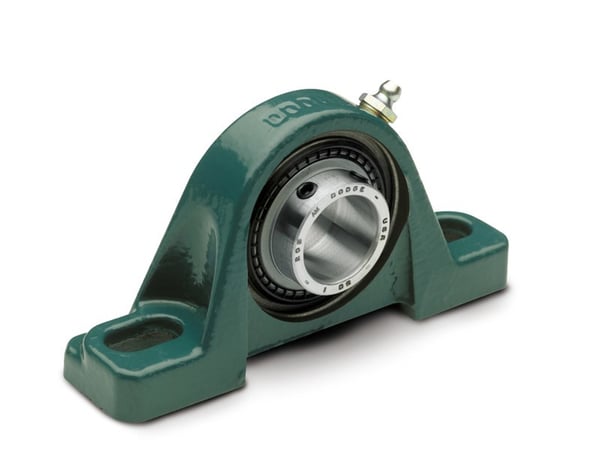

Dodge® 123816 209 Normal Duty Pillow Block Ball Bearing Unit, 1-11/16 in Dia Bore, 5.5 to 6.19 in L Bolt Center-to-Center, 2-1/8 in Base to Bore Centerline, 7.44 in OAL x 4.28 in OAH


Description

Dodge® Pillow Block Ball Bearing Unit, Normal Duty, Series: 209, 1-11/16 in Bore, 5.5 to 6.19 in Bolt Center-to-Center Length, 2-1/8 in Base to Bore Centerline, 7.44 in Overall Length, 1-15/16 in Overall Width, 4.28 in Overall Height, Two-Bolt Base Mounting, Round Bore, 2 in Base Width, Set Screw Locking Device, Single Lip Seal, Non-Expansion (Fixed) Expansion, 7891 lb Dynamic/4906 lb Static Load, 225 to 400 deg F, Steel, Powder Coated

Specifications

Base to Bore Centerline 2-1/8 in
Base Width 2 in
Bolt Center-to-Center Length 5.5 to 6.19 in
Bore Diameter 1-11/16 in
Bore Type Round
Expansion Type Non-Expansion (Fixed)
Finish Powder Coated
Load Capacity 7891 lb Dynamic/4906 lb Static
Locking Device Set Screw
Material Steel
Mounting Type Two-Bolt Base
Overall Height 4.28 in
Overall Length 7.44 in
Overall Width 1-15/16 in
Seal Type Single Lip
Series 209
Temperature Rating 225 to 400 deg F
Type Normal Duty

Warranty: Limited

Country of Origin: United States

Standards and Approvals: UL Listed

Application:
Air Handling, Unit Handling, Food and Beverage, Paper, Forest Products, Automotive, Chemical, Packaging and Processing

Features

  • Normal duty wide inner ring
  • Stronger and more flexible cage
