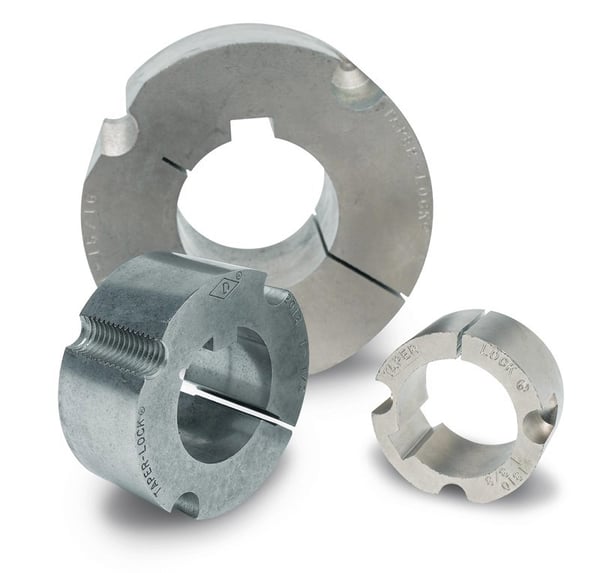

Dodge® 119606 Stock Bore Taper Lock Bushing, 40 mm Dia Bore, 2-1/4 in Dia Barrel, 1 in OAL, Sintered Steel


Description

Dodge® Taper Lock Bushing, Stock Bore, 40 mm Bore Dia, 2-1/4 in Barrel Dia, 3-1/4 in Hub Dia, 8 deg Taper, 2.13 in Bolt Circle, 2 Bolt Holes, 3/8 x 5/8 in Screw, 4300 in-lb, 1 in Overall Length, 12 x 3.3 mm Keyway, Sintered Steel

Dodge® Taper-Lock® bushings are flangeless for clean, compact application. They are engineered with an 8 deg taper and a flush-mounted design with no protruding parts providing secure locking and elimination of wobble.

Specifications

Barrel Diameter 2-1/4 in
Bolt Circle Diameter 2.13 in
Bore Diameter 40 mm
Hub Diameter 3-1/4 in
Keyway Size 12 x 3.3 mm
Material Sintered Steel
Number of Bolt Holes 2
Overall Length 1 in
Screw Size 3/8 x 5/8 in
Taper 8 deg
Torque Rating 4300 in-lb
Type Stock Bore

Country of Origin: United States

Standards and Approvals: ABMA, AGMA, BSA, CEMA, MPTA, PTDA Standards

Application:
Aggregate and Cement, Air Handling, Chemical, Oil and Gas, Food, Beverage and Pharmaceutical, Mining, Paper and Forest, Unit and Baggage Handling, Water and Wastewater Industries

Features

  • Size 1610 bushing
  • Clean and compact design
  • Easy On/Off operation
  • 8 deg taper grips tight, holds tight, runs true and no wobble
  • Flush mounting and no protruding parts
