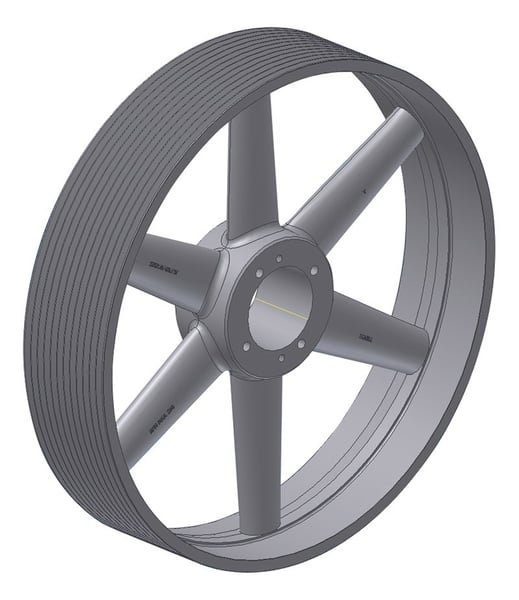

Dodge® 112083 Type A Block Multiple Groove Sheave, 1/2 to 2-11/16 in Taper-Lock® Bore, 5 in OD, 8 Grooves, 4.95 in Dia Pitch, 3.53 in W Face


Description

Dodge® Multiple Groove Sheave, Type A Block, Taper-Lock® Bore, 1/2 to 2-11/16 in Bore, 5 in OD, 4.95 in Pitch Diameter, 8 Grooves, 3.53 in Face Width, 2517 Bushing, For Use With: 3V-Cross Section Wedge V-Belts, Gray Iron

All Baldor Dodge® V-drive sheaves are manufactured to ISO 9002 quality standards with precision machining that meets or exceeds joint RMA/MPTA industry standards for smooth operation and extended belt life. This provides low economical costs per hp transmitted due to shock load and vibration isolation creating clean, quiet operation.

Specifications

Bore Diameter 1/2 to 2-11/16 in
Bore Type Taper-Lock®
Bushing Type 2517
Face Width 3.53 in
Material Gray Iron
Number of Grooves 8
Outside Diameter 5 in
Pitch Diameter 4.95 in
Suitable For Use With 3V-Cross Section Wedge V-Belts
Type Type A Block

Country of Origin: United States

Standards and Approvals: ISO 9002, MPTA Standard, UL Listed

Application:
Aggregate, Cement, Air Handling, Chemical, Oil, Gas, Food, Beverage, Pharmaceutical, Mining, Paper, Forest Products, Unit, Baggage Handling, Water and Wastewater Industries

Features

  • Isolates vibration, cushions shock loads
  • Minor misalignment capability
  • Drive ratios of 6:1 or more possible
  • Low maintenance
  • No lubrication required
  • Efficiency of 93% is typical
  • Without Keyway
