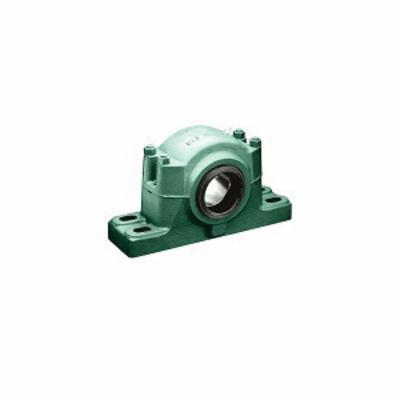

Dodge® 042022 Type SFXT Pillow Block Roller Bearing Unit, 3-7/16 in Dia Bore, 11-3/4 to 12-3/4 in L Bolt Center-to-Center, 4-1/2 in Base to Bore Centerline, 15-1/4 in OAL x 8-3/4 in OAH


Description

Dodge® Pillow Block Roller Bearing Unit, Type SFXT, 3-7/16 in Bore, 11-3/4 to 12-3/4 in Bolt Center-to-Center Length, 4-1/2 in Base to Bore Centerline, 15-1/4 in Overall Length, 6.22 in Overall Width, 8-3/4 in Overall Height, Four-Bolt Base Mounting, Round Bore, 4.38 in Base Width, Adapter Mounted Locking Device, Triple-Tect™ Seal, Non-Expansion (Fixed) Expansion, 96500 lb Dynamic/106000 lb Static Load, 2200 rpm Maximum, Cast Iron, Black Oxide

Specifications

Base to Bore Centerline 4-1/2 in
Base Width 4.38 in
Bolt Center-to-Center Length 11-3/4 to 12-3/4 in
Bore Diameter 3-7/16 in
Bore Type Round
Expansion Type Non-Expansion (Fixed)
Finish Black Oxide
Load Capacity 96500 lb Dynamic/106000 lb Static
Locking Device Adapter Mounted
Material Cast Iron
Maximum Speed 2200 rpm
Mounting Type Four-Bolt Base
Overall Height 8-3/4 in
Overall Length 15-1/4 in
Overall Width 6.22 in
Seal Type Triple-Tect™
Type Type SFXT

Country of Origin: United States

Standards and Approvals: UL Listed

Features

  • Cast-in dimples locate drill holes for lube fittings, vents, sensors and mounting modifications
  • Housing base is threaded to accept four grade five cap bolts for added strength that match base bolts for one-wrench installation
  • Standard housings have two oversized drains adaptable to circulating oil systems
  • Pry slots allow easy separation of the pillow block
  • Cap bolts match base bolts for one-wrench installation
