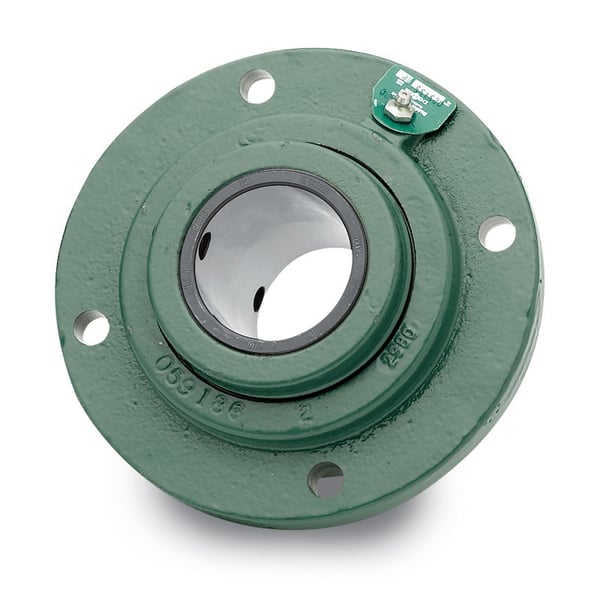

FC-E-112R Dodge® 023127 115 Non-Expansion Type E-Xtra Triple Lip Flange Mount Roller Bearing Unit, 1-3/4 in Dia Bore, 3.8 in L Bolt Center-to-Center, 5.38 in Dia Bolt Circle, Piloted Flange Mount, 6.38 in OAL/Dia


Description

Dodge® Flange Mount Roller Bearing Unit, Non-Expansion Type E-Xtra Triple Lip, Series: 115, 1-3/4 in Bore, 3.8 in Bolt Center-to-Center Length, 5.38 in Diameter Bolt Circle, Piloted Flange Mounting, 6.38 in Overall Length/Diameter, 3-1/2 in Overall Depth, 6.38 in Overall Height, 65 deg Set Screw Locking Device, Cast Iron Bearing, 9300 lb Dynamic/43000 lb Static Load, 3050 rpm Maximum, -100 to 200 deg F, Uncoated

Specifications

Bearing Material Cast Iron
Bolt Center-to-Center Length 3.8 in
Bolt Circle Diameter 5.38 in
Bore Diameter 1-3/4 in
Finish Uncoated
Flange Mounting Type Piloted
Load Capacity 9300 lb Dynamic/43000 lb Static
Locking Device 65 deg Set Screw
Maximum Speed 3050 rpm
Overall Depth 3-1/2 in
Overall Height 6.38 in
Overall Length/Diameter 6.38 in
Series 115
Temperature Rating -100 to 200 deg F
Type Non-Expansion Type E-Xtra Triple Lip

Country of Origin: United States

Application:
For dusty or damp environments in industries such as mining, aggregate and cement

Features

  • New XTS seal provides added protection against contamination
  • Completely assembled, factory adjusted and properly lubricated shaft
  • Stocked in all configurations
