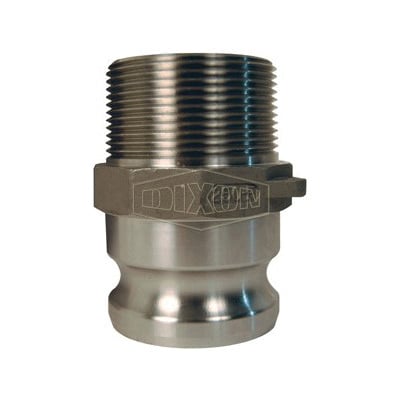

Dixon® G300-F-SS Type F Cam and Groove Adapter, 3 in, Male Adapter x MNPT, 316 Stainless Steel, Import


Description

Dixon® Cam and Groove Adapter, Type F, Fitting/Connector Type: Adapter, 3 in Nominal Size, Male Adapter x MNPT, 4-3/32 in Length, 125 psi, 316 Stainless Steel, 3-19/32 in Dia, Import

Specifications

Dimensions 3-19/32 in Dia
Domestic/Import Import
End Style Male Adapter x MNPT
Fitting/Connector Type Adapter
Length 4-3/32 in
Material 316 Stainless Steel
Nominal Size 3 in
Pressure Rating 125 psi
Type Type F

Warranty: Limited

Country of Origin: China

Application:
Designed for use with liquids

Features

  • Designed to interchange with all products produced to A-A-59326D
  • Made to Dixon specifications and branded Dixon
  • For use with liquid
  • Under no circumstances should cam and groove couplings be used for compressed air or steam service!
  • Pressure rating is based on the seal of the mating part
  • Pressure rating recommendations are based on the use of mating Dixon fittings at ambient temperature 70 deg F with a standard seal installed
  • 125 psi at ambient temperature 70 deg F pressure
  • Warning: this product contains a chemical known to the state of California to cause birth defects or other reproductive harm
  • Do not use in connection with drinking water
  • Wash hands after handling
