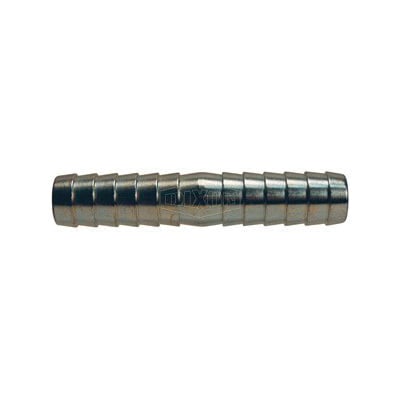

Dixon® DM6 Hose Mender, 3/4 in, Hose Shank, Steel, Domestic


Description

Dixon® Hose Mender, Fitting/Connector Type: Coupling, 3/4 in Nominal, Hose Shank End Style, 4-1/32 in Length, Steel, Zinc Plated, 25/32 in Dia, Domestic

Specifications

Dimensions 25/32 in Dia
Domestic/Import Domestic
End Style Hose Shank
Finish Zinc Plated
Fitting/Connector Type Coupling
Length 4-1/32 in
Material Steel
Nominal Size 3/4 in

Warranty: Limited

Country of Origin: United States

Application:
Air Compressors, Automatic Manufacturing Operations, Aircraft Controls and Tire Installation in Industries

Features

  • Hose mender for repairing hoses
  • Connects to a hose on both ends
  • Zinc plated steel for greater corrosion resistance than unplated steel
  • Barbed fitting for a tight seal on hoses
  • Not for compressible products such as air, nitrogen, or steam
  • For use with a hose clamps or crimp sleeve or ferrule
  • Menders are not for compressible products such as air, nitrogen or steam
  • The working pressure may vary with the construction of the hose, the type of clamping system used and the application
  • In accordance with the R.M.A. bulletin for oil suction and discharge hose, a coupled length of hose in any size, should be tested to 1-1/2 times the working pressure and held for fifteen minutes without leaking or coupling movement
  • Warning: this product contains a chemical known to the state of California to cause birth defects or other reproductive harm
  • Do not use in connection with drinking water
  • Wash hands after handling
