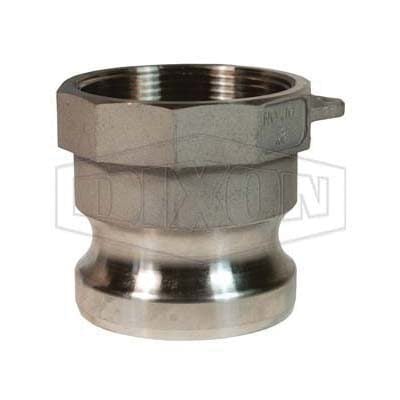

Dixon® 300-A-SS Boss-Lock™ Type A Cam and Groove Adapter, 3 in, Male Adapter x FNPT, 316 Stainless Steel
Dixon® 300-A-SS Boss-Lock™ Type A Cam and Groove Adapter, 3 in, Male Adapter x FNPT, 316 Stainless Steel
SKU: DIXV 300-A-SS
Manufacturer Part Number: 300-A-SS
Brand: Dixon®
Description
Specifications
| End Style | Male Adapter x FNPT |
| Fitting/Connector Type | Adapter |
| Length | 2-31/32 in |
| Material | 316 Stainless Steel |
| Nominal Size | 3 in |
| Pressure Rating | 125 psi |
| Series | Boss-Lock™ |
| Type | Type A |
Features
- Precision machined to rigid tolerances
- Under no circumstances should cam and groove couplings be used for compressed air or steam service!
- Pressure rating is based on the seal of the mating part
- Pressure rating recommendations are based on the use of mating Dixon fittings at ambient temperature 70 deg F with a standard seal installed
- 125 psi at ambient temperature 70 deg F pressure
- Warning: this product contains a chemical known to the state of California to cause birth defects or other reproductive harm
- Do not use in connection with drinking water
- Wash hands after handling
