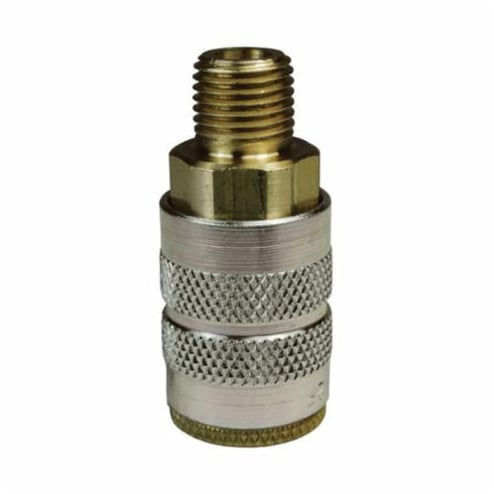

Dixon® 2FM2-B D Interchange Semi-Automatic Pneumatic Coupler, 1/4 in, Quick-Connect x MNPT, Brass


Description

Dixon® Pneumatic Coupler, Interchange Semi-Automatic, Series: D, Fitting/Connector Type: Coupler, 1/4 in Nominal, Quick-Connect x MNPT, 3/4 in Hex, 500 psi, -40 to 250 deg F, Brass, Polished Chrome, 0.88 in OD x 2.04 in L

Specifications

Dimensions 0.88 in OD x 2.04 in L
End Style Quick-Connect x MNPT
Finish Polished Chrome
Fitting/Connector Type Coupler
Hex Size 3/4 in
Material Brass
Nominal Size 1/4 in
Pressure Rating 500 psi
Series D Series
Temperature Rating -40 to 250 deg F
Type Interchange Semi-Automatic

Standards and Approvals: RoHS Compliant

Application:
Industrial Fittings

Features

  • Machined components are manufactured using solid bar stock
  • 27 cfm flow rate
  • Stainless steel balls, retaining rings and springs maximize corrosion resistance and extend service life
  • Nitrile (Buna-N) seals are standard
  • Steel tubular valve
